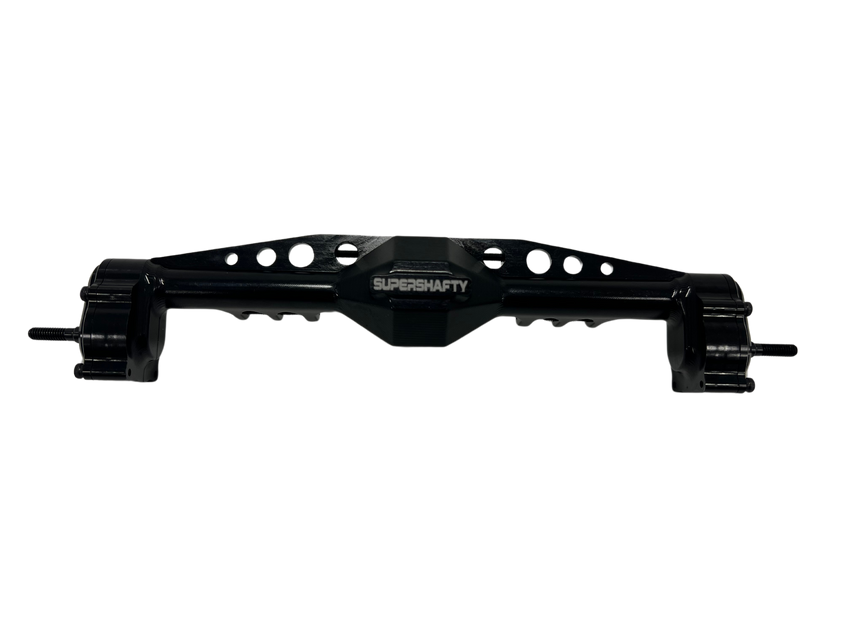

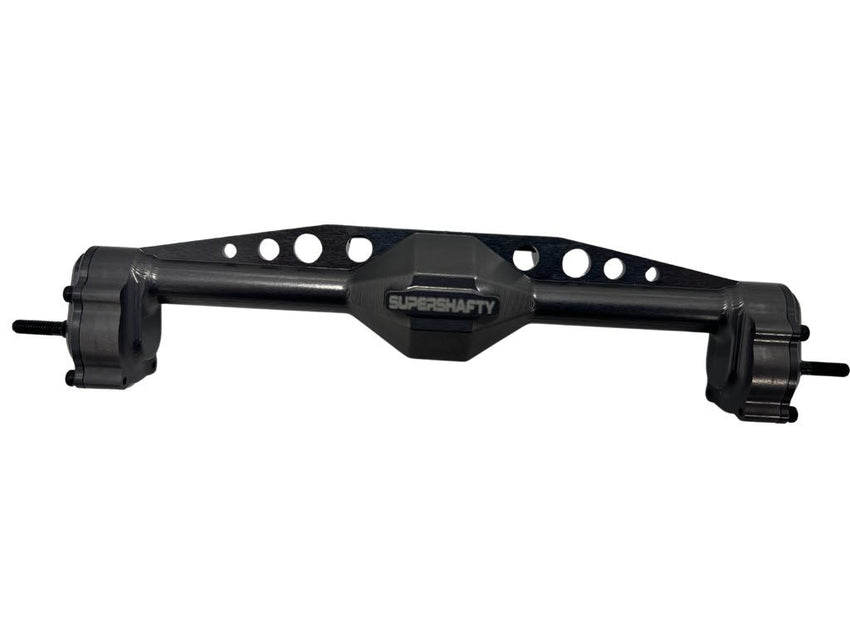

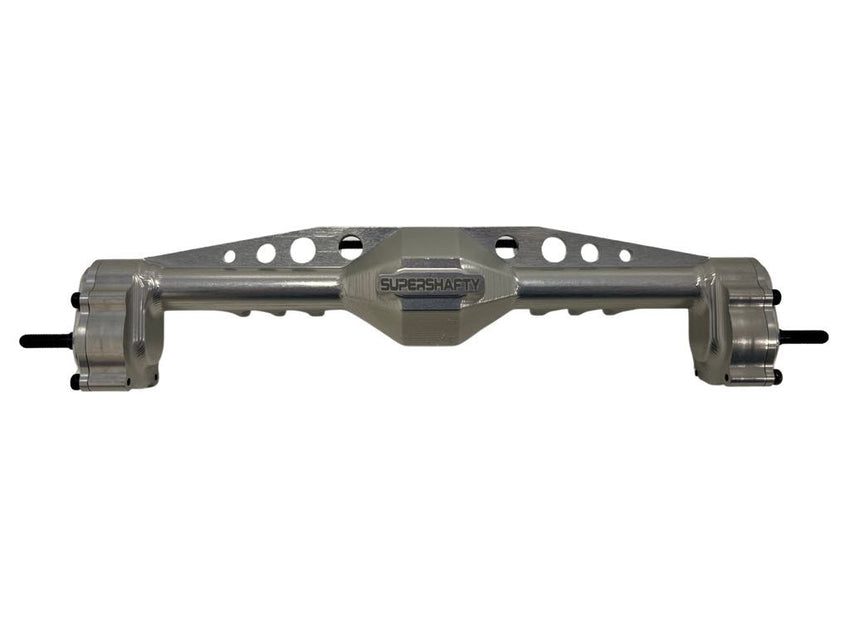

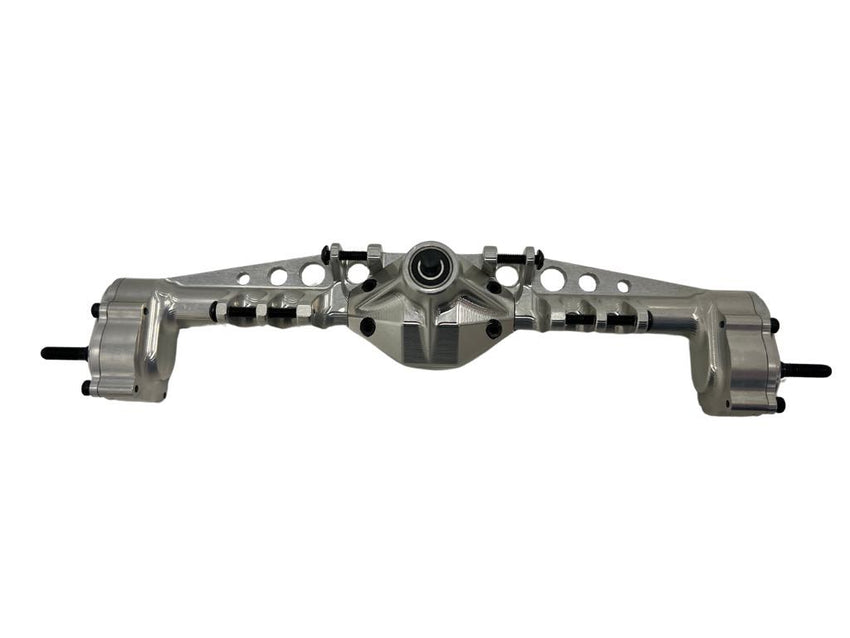

SuperShafty "CP43" STRAIGHT Custom Axle Housings
SuperShafty "CP43" Custom Axle System
Included in Rear Axle Housing:
- SuperShafty Straight Portal Axle housing
- SuperShafty Axle center section
- SuperShafty 2 differential bearing retainers
- SuperShafty 2 x Capra/10.3 Style Stub shafts
- SuperShafty 2 x Straight Axle shafts
- SuperShafty 2 x Aluminum Portal box covers
- Bearings and Hardware needed.
Key Features:
- One Piece housing construction
- Machined from 7075 Aluminum
Optional/Replacement Parts:
- CP43 Complete Axles by SuperShafty
- Capra/AR44 Style Spool by SuperShafty
- Capra/AR44 Style Ring and Pinion Gears by SuperShafty
- Capra/10.3 Style Portal Box Gears by TGH
- Capra/10.3 Style Knuckles (For Steering version) by SuperShafty
- CP43 Steering Links by Hardcore RC
- CP43 Short Panhard Mount by SuperShafty
Dimensions:
- CP43's are a Custom Axle Dimension.
- They are slightly wider than Axial 10.3
- They are a good bit narrower than Axial Capra
- They are similar in size to Vanquish F10's
- Use them like "Franks Red Hot" - Put them on everything.
Compatibility:
- Our housings will come with top Axle shafts, because nobody is making this size width.
- Also, SuperShafty Capra Knuckles will work with them, as well as Axial 10.3 and Capra Style portal knuckles from other manufactures.
- Drop in compatibility with stock and Stock Upgrade Knuckle parts.
- Ability to run Stock Plastic Knuckles
- Or Upgrade to SuperShafty CP43 Knuckles, these include Aluminum gear covers. (Less than 2oz)
- Brass SuperShafty CP44 Knuckles Optional, these include Aluminum gear covers. (5oz)
- Stock, or Stock Replacement Portal covers, will not fit our Knuckles.
- Custom Bolt on Panhard option with included 4th link mount.
- Custom Bolt on BAMS (Behind Axle Mounted Servo)
Warranty:
- These housings carry a 2 Year Bombproof guarantee against Defects and Accidental breakage. We are confident in our design and product and we want you to be too.
- We know you guys are going to beat on them. So If something happens to them, We'll replace. (Does not apply to Abuse)
- Axle shafts are not warrantied against breakage. Don't be dumb, and you won't break them though.
- YOU MUST run a washer between the Traxxas Ball end, and the link mount, if you are running aftermarket links with the Revo Rod ends. The Traxxas Ball end is slightly narrower than the Axial one. If you don't run this washer, when you tighten the link, it will flex the link mount to be like this / \ and this will void a warranty breakage at this part of the housing.
- Cracked link mounts because of the above issue, will not be covered under the warranty.
