Vanquish Wraith/Yeti Axle V2 Anodized

Vanquish Products Aluminum Axle V2 for Axial Wraith and Axial Yeti

• Added changes to our V2 axles to enhance our already proven and durable V1 axles
• Redesigned axle internals to receive larger pinion gear shaft bearing, replacing the old 5x11x4mm bearing with a new bigger and stronger 5x14x5mm bearing
• Redesigned axle internals also receive one piece bearing retainers
• One piece bearing retainers patent pending
• No more excess pressure on bearings that limit bearing longevity
• Shock mounts are now threaded into the body from the link mount side rather than a hole through the axle, providing a more realistic scale aspect
• Smaller through hole from the side to allow more material for threas to engage the C-Hub or Lockout

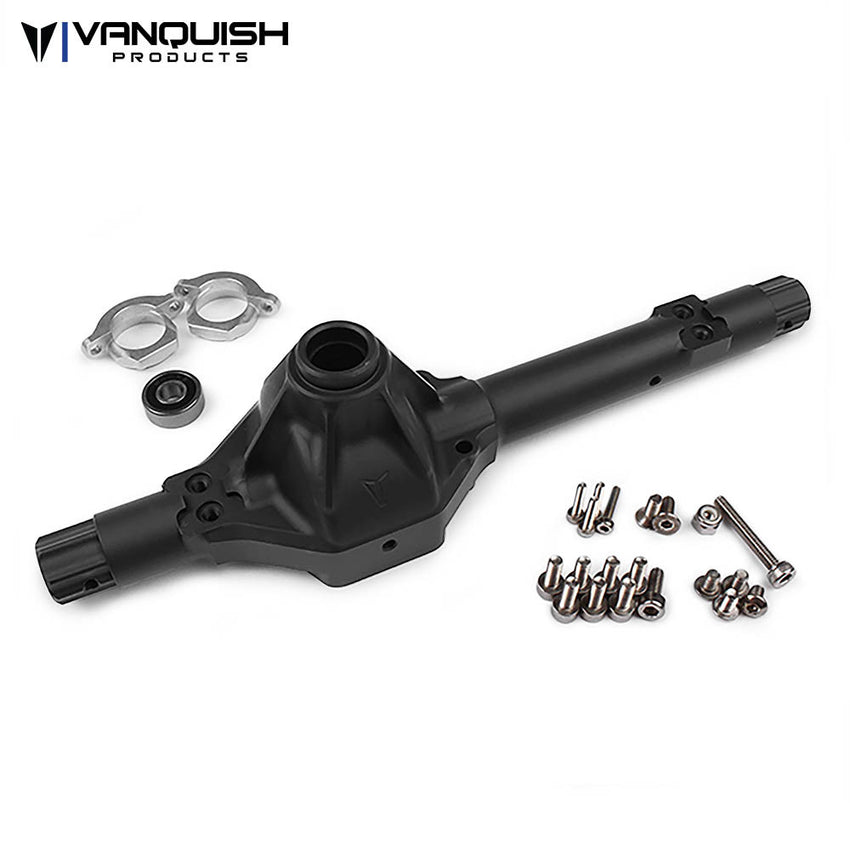

Includes the following:

• 1pc Wraith Axle V2 Housing
• 2pcs Bearing Retainers
• 8pcs M3 x 0.5 x SHCS 8mm
• 1pc M3 x 0.5 x SHCS 20mm
• 1pc Fast Eddy Bearing Part# 605-2RS
• 4pcs M3 x 0.5 BHCS 5mm
• 1pc M3 x 0.5 Nut
• 2pcs M3 x 0.5 FHCS 8mm
• 4pcs M2 x 0.4 SHCS 10mm
• Instruction Sheet
