VANQUISH VFD TWIN MACHINED TRANSFER CASE GEAR SET

SKU:

Product type: Drivetrain

Vendor: Vanquish

Availability:

$89.99

Add to the wishlist

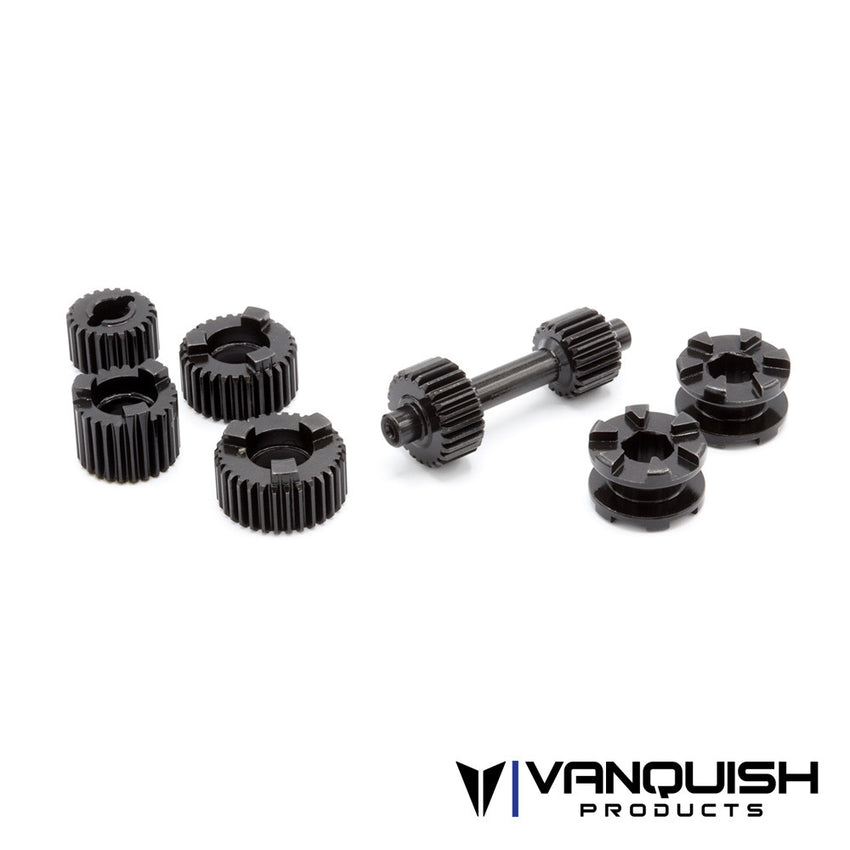

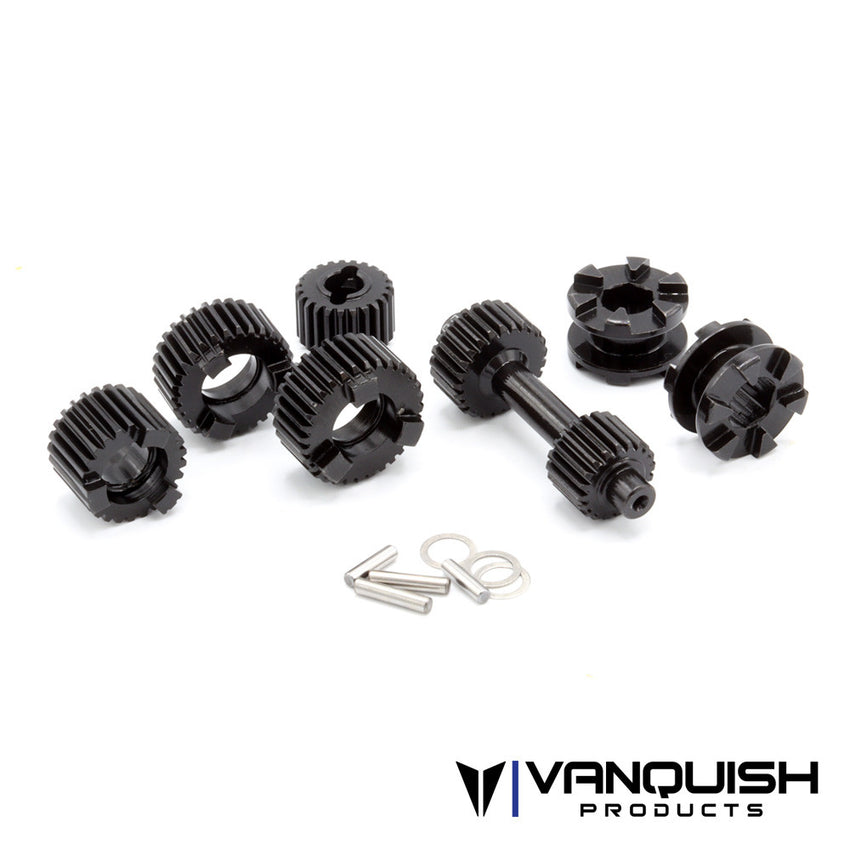

VFD Machined Transfer Case Gear Set. This gear set replaces all sintered gears inside of the transfer case of the VFD Twin transmission. These are heavy duty machined steel 48P gears that will work in any VFD Twin Transmission. The idler gear assembly is converted to a one piece unit that reduces gear play and increases strength.

Package Includes:

  • 1pc - 23t 48p Input Gear
  • 1pc - 32t 48p Rear Drive gear
  • 1pc - 30t 48p Standard OD Front Drive Gear
  • 1pc - 25t 48p High OD Front Drive Gear
  • 1pc - 20t/25t 48p Idler Gear Shaft
  • 2pc - Slide Dogs
  • Pins and shims

Compatible With:

  • VS4-10 Phoenix Portal - VPS09007
  • VFD Twin Transmission Kit - VPS10200

Note: Refer to VPS09007 or VPS10200 Manual for install.  Carefully note tooth count locations and size of gears.  32t is the largest and placed on the rear ouput for dig.  30t is at the front of the front output.  25t is at the back of the front output.
