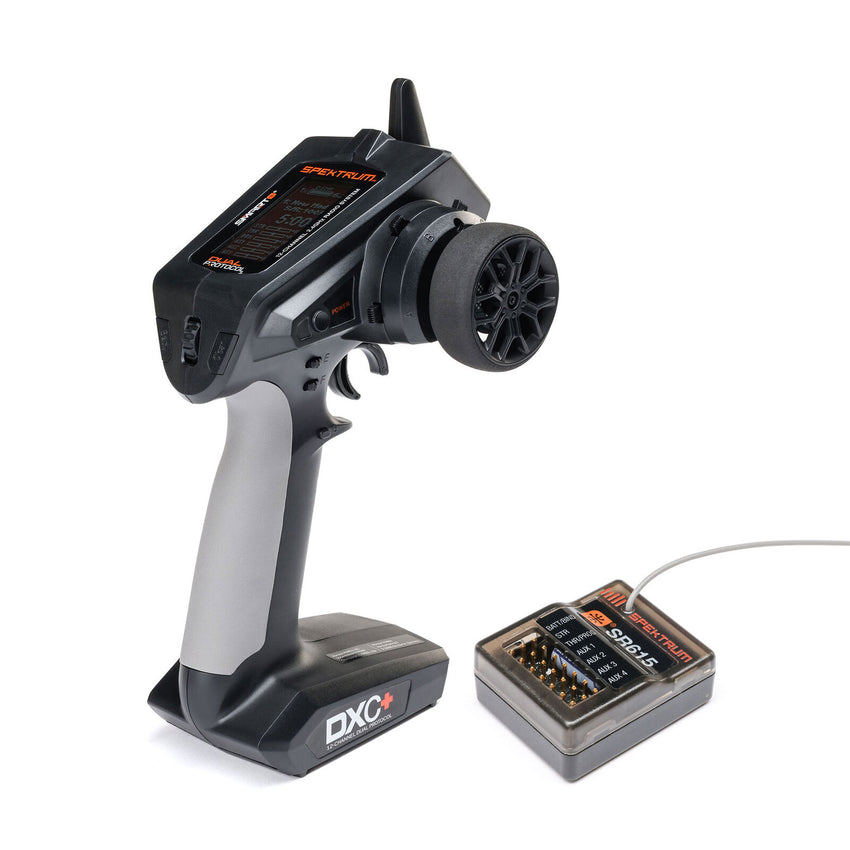

Spektrum DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
SKU: SPM6130
Only 6 products left
Pickup available at Key City Hobby
Usually ready in 1 hour
Spektrum DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
The DXC+ is the savvy solution for bashers, boaters and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 12-channel control offers. Built around frequency agile, DSMR+® 2.4GHz technology, you can use the DXC+ in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb.
The DXC+ includes new upgrades and features that makes it the ideal upgrade transmitter for RTR vehicles. Upgrades include Dual Protocol, DSMR+, 12 proportional channels and USB for easy firmware updates and compatibility with the VRC Racing Simulator.
Features
- Dual Protocol (DSMR/SLT) Compatibility
- Twelve fully proportional channels with user-friendly steering and throttle mixes
- Frequency-agile, Spektrum® DSMR+® 2.4GHz technology
- Backlit LCD screen for better visibility
- USB for firmware updates and VRC compatibility
- Spektrum Smart Technology ready
- Program and fine-tune compatible AVC® receivers
- 20-model memory
- Smooth, dual-ball bearing precision
- Non-slip rubber grips
- Back button makes navigating the interface more intuitive
- Steering mix, 4-wheel steering mixing, plus one assignable Mix
- Bind-progress screen displays status and frame rate
- Compatible with DSMR and DSM2* receivers
- EN328 compatible
The DXC+ is compatible and able to bind with SLT protocol equipped vehicles, such as the Losi NASCAR RC Racecars, ARRMA GROM small-scale bashers and Axial SCX24 micro crawlers. With this transmitter, you'll be able to drive SLT and DSMR protocol receivers with one transmitter. Dual Protocol means one perfect control.
The DXC+ features a backlit LCD display that allows for better visibility under many weather conditions. The backlight is user adjustable through the Backlight set up in the transmitter.
The DX Rugged+ is built around frequency-agile DSMR+ 2.4GHz technology. This exclusive Spektrum® technology can be used in any surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. New features of the 'plus' include the ability for users to do many different mixes, change inputs and do other advanced programming. New mixes include Throttle Mixes, Absolute travel support, Emergency brake feature, Logical, combo, and analog switch support. Additionally, it supports both DRIVE and MS6X Technology. It's also backward compatible with DSM2® and marine-specific Spektrum receivers. This means most longtime Spektrum users can continue using their existing receivers.
12-fully proportional channels allow for more flexibility and versatile control for auxiliary systems such as winches, lights, etc. It's also physically lightweight so that there's less fatigue on you during long trips, plus it's easy to transport with all of your rigs.
USB-C port allows for easy firmware updates, plus a convenient link and connection to control VRC Racing Simulator.
The Spektrum DXC+ has many advanced programming features. So naturally it comes with advanced-level, comfortable grip, and easy to reach controls.
When combined with Spektrum Firma Smart ESCs and Spektrum Smart capable receivers, the DXC+ receives telemetry data right to your transmitter through the Smart Throttle port on the receiver. Smart Throttle ESCs can send RPM, speed, ESC temp, volts and amp draw.
Sophisticated programming isn't worth much if it's difficult to use. The SimpleScroll interface makes navigating menus and changing settings as simple as 'scroll and click.' It's so easy to use; most users can complete complex programming tasks without ever having to look at the manual.
The DXC+ makes it possible to custom tune the AVC system by providing easy-access to dedicated adjustments. In addition, open channels of the DXC+ can be used to adjust the AVC steering and throttle systems independently. No matter what you're driving, AVC technology can easily meet your skill level or driving style with control that makes it feel like you're driving a finely tuned vehicle that handles beautifully at every speed.
The calibration screen gives you the ability to recalibrate the steering and throttle positions for the ultimate in accuracy.
SR615 Smart Receiver Included
Built around frequency-agile DSMR technology, the SR615 6-channel receiver delivers superb range and response, especially in noisy RF environments where a solid 2.4GHz link is crucial. Not only is the 2.4GHz link solid, but this receiver also implements a lightning-fast 5.5ms frame rate, providing a quicker, low-latency connection for the pro-level enthusiast. It's potted with an epoxy material to help protect the board from water and vibrations. Plus, while binding, you have the choice of SmartSafe™ and preset 'Gas' failsafe options.
Specs
- Antenna Length: Integrated
- Application: Surface cars, trucks, boats
- Audio: Alarms and Tones
- Band: 2.4GHz
- Bearing: Dual-ball bearing
- Bind Method: Bind Button
- Bushing Or Bearing: Bearing
- Channels: 12
- Completion Level: Transmitter and Receiver
- Connector Type: USB
- Data Port: Yes
- Failsafe: Yes
- Frame Rate: 11ms, 22ms
- Input Voltage: 3.5–9.6V
- Model Memory: 20
- Modulation: DSMR+ / DSMR
- Operating System: Raceware
- Product Height: 9.88" (251 mm)
- Product Length: 6.29" (160 mm)
- Product Weight: 402g
- Product Width: 4.8" (122 mm)
- Programmable: Yes
- Range: Full
- Receiver: Included
- Technology: DSMR Protocol, DSMR+, Smart, SLT Protocol
- Telemetry: Yes
- Transmitter (Tx) Battery Type: AA Dry Cell
