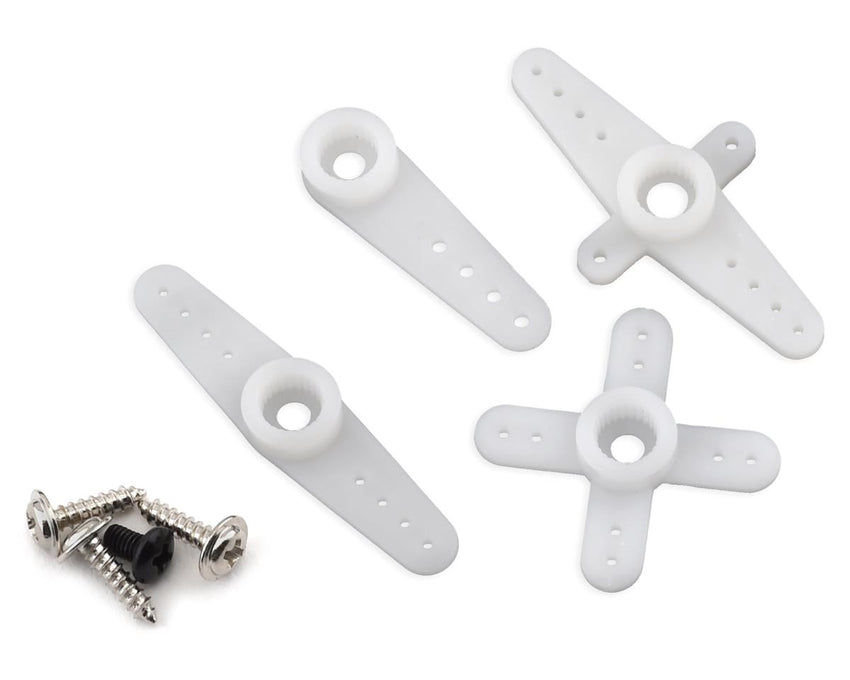

  • Servo Horn Assortment
  • Hardware

Reefs RC 179 Smart Micro Servo/Winch

Key City Hobby

Pickup available,

Usually ready in 1 hour

3914 Cornell Place
Unit 1
Frederick MD 21703
United States

Call: +12403414621

Reefs RC 179 Smart Micro Servo/Winch

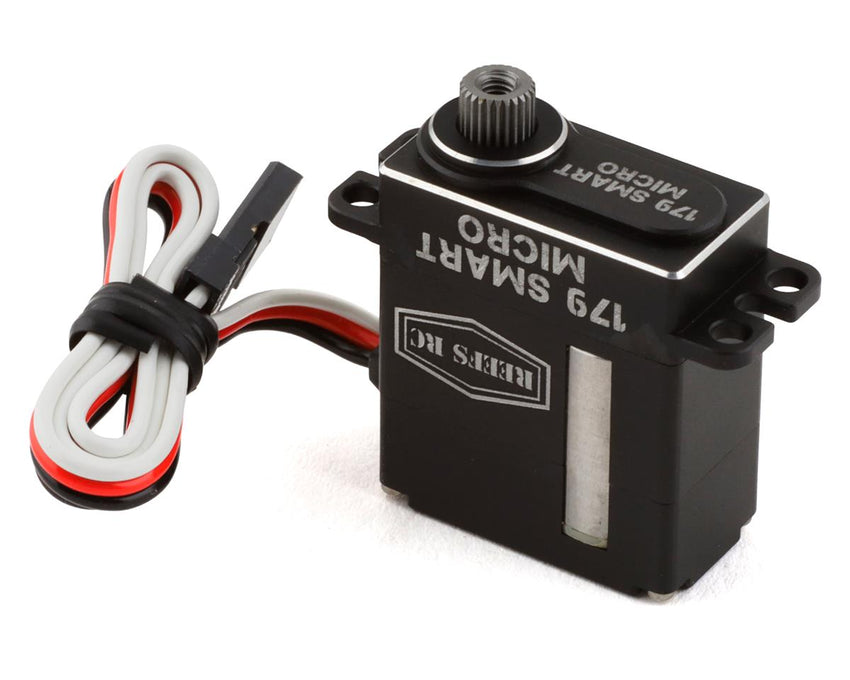

The Reefs RC 179 Smart Micro Servo/Winch packs big power into this micro size. Using a brushless motor and programmable electronics this servo is able to produce up to 179oz-in at 8.4v! The Reefs RC 179 can be programmed to either act as a traditional servo or set up for continuous rotation in winch mode. If your looking for a powerful servo/winch option but space is tight this Reefs RC 179 Smart Micro servo may be your solution.
  • Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
  • Built in preprogrammed winch controller
  • Pulse Width Modulation Control
  • High Torque digital brushless servo
  • Length: 0.9" (23mm)
  • Width: 0.47" (12mm)
  • Height: 1.08" (27mm)
  • Weight: .74oz / 21g
  • Torque: 6.0V: 135oz / 7.4V: .07sec / 8.4V: .06sec
  • Servo Type: Digital
  • Servo Size Category: Micro
  • Programmable: Yes (via optional programmer)
  • Servo Operating Voltage 6.0 - 8.4V (HV)
  • Spline Count: 25
  • Bearing: 2BB
  • Deadband: 2uS
  • REEFS LINK required for Programming
