Nordic Crawl ULV Transmission | ARTFUL DODGERS X NORDICCRAWL

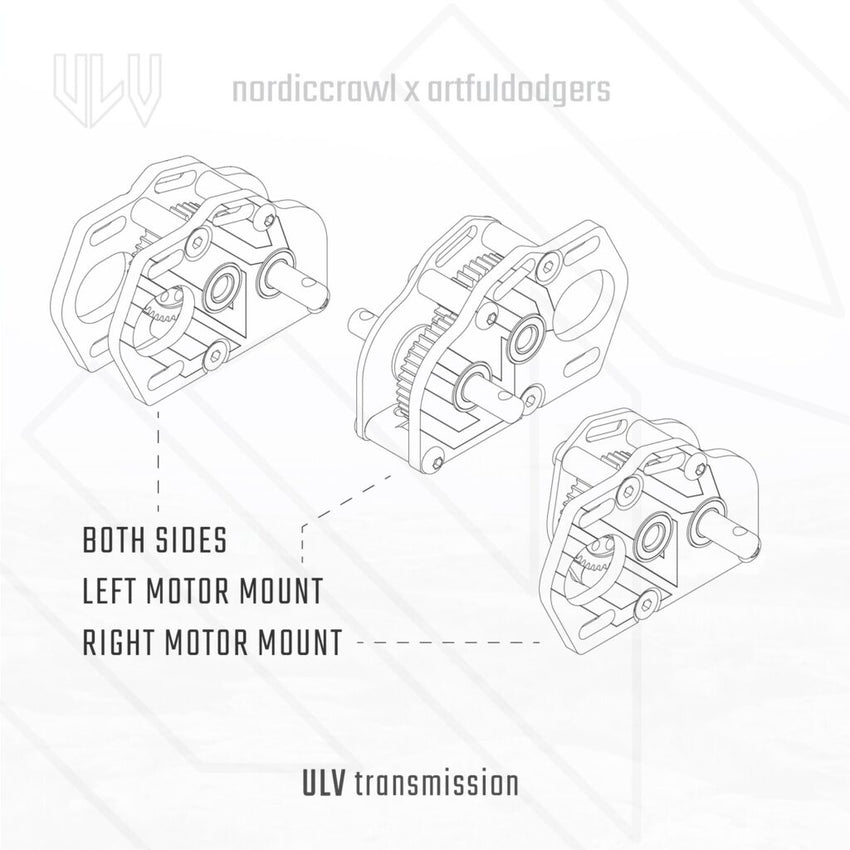

ULV Transmission (double-sided motor mount)

Transmission was designed for custom builds!
This transmission is not directly fit for any chassis.
Mostly there is necessary to make your own mounting holes in skid or adapt stock.

You can download the transmission ratio sheets in pdf format from here.

Hardened steel gears with pitch 48DP and pin
Titanium shaft
Aluminum rounded 12mm crossbars 6061 x2
Aluminum skid mountings 12mm 6061 x2
1x 3mm Carbon fiber LEFT motor plate
1x 3mm Carbon fiber Right motor plate
1.5mm Carbon fiber universal plate
Hardware and shims

Portal or Straight axles
Assembled with RIGHT motor mount plate
0% overdrive

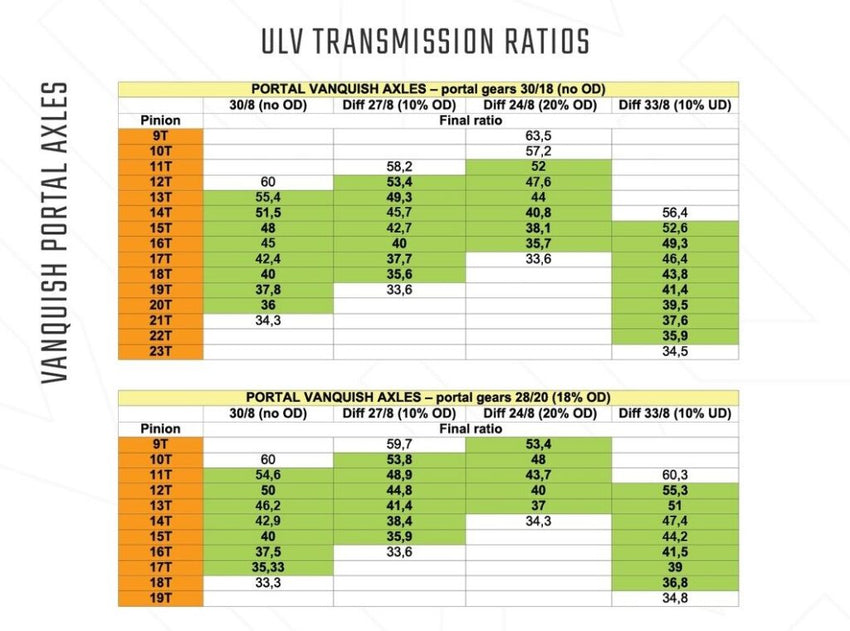

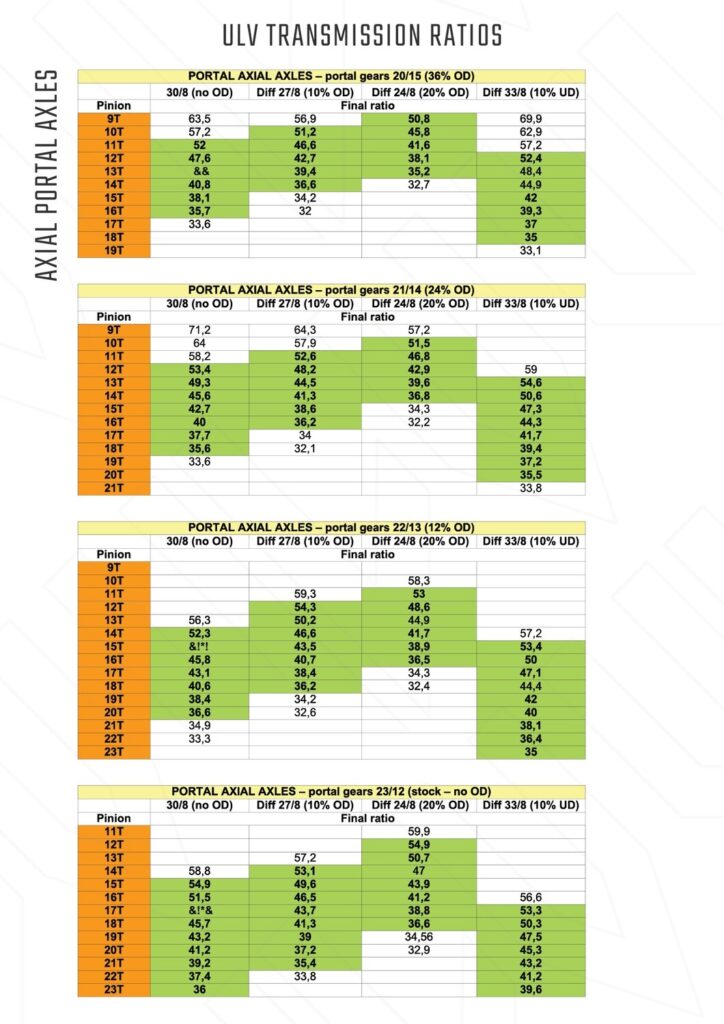

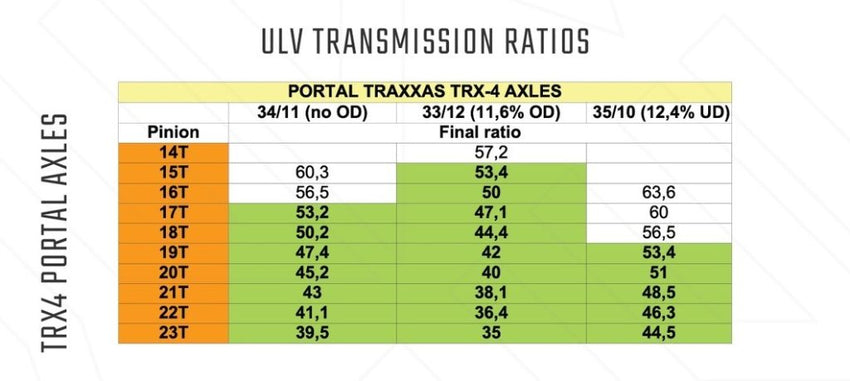

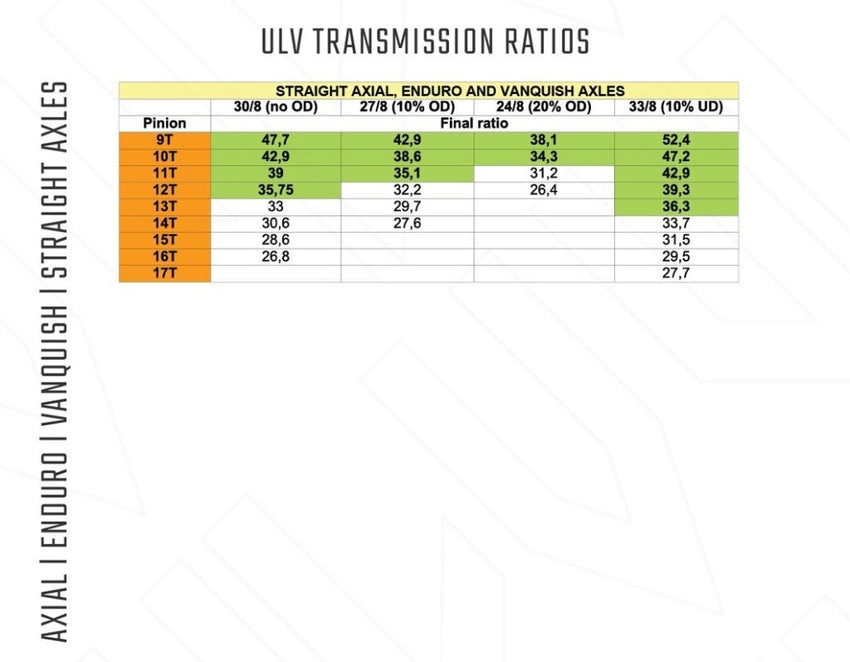

Transmission Ratios are on the pictures to the left
Weight: 40g / 1,4oz

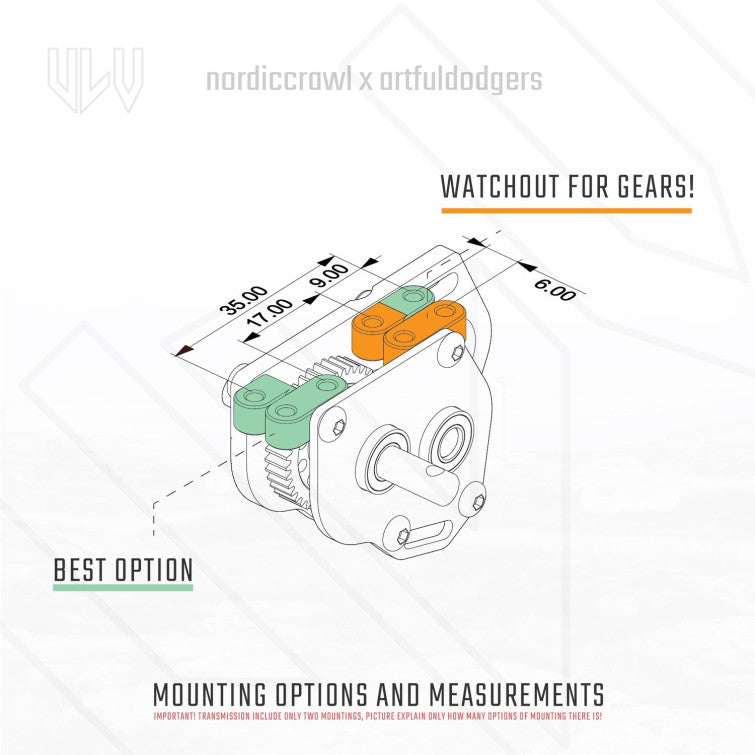

Outer BOX measurements without shaft: 20.4mm(width)(41mm with shaft) x 54mm (length) x 36.2mm (height)
Shaft diameter 5.0mm

Optional ULV transmission cover
Optional Blank Skid – 78x55x8mm (+/-) / 38mm rails mounting holes
Optional ULV Angled Skid – 70width / 38mm rails mounting holes
