Nordic Crawl Dragon Ultimate Kit
NORDIC CRAWL DRAGON ULTIMATE KIT
(Chassis kit + ULV transmission + titanium links kit)

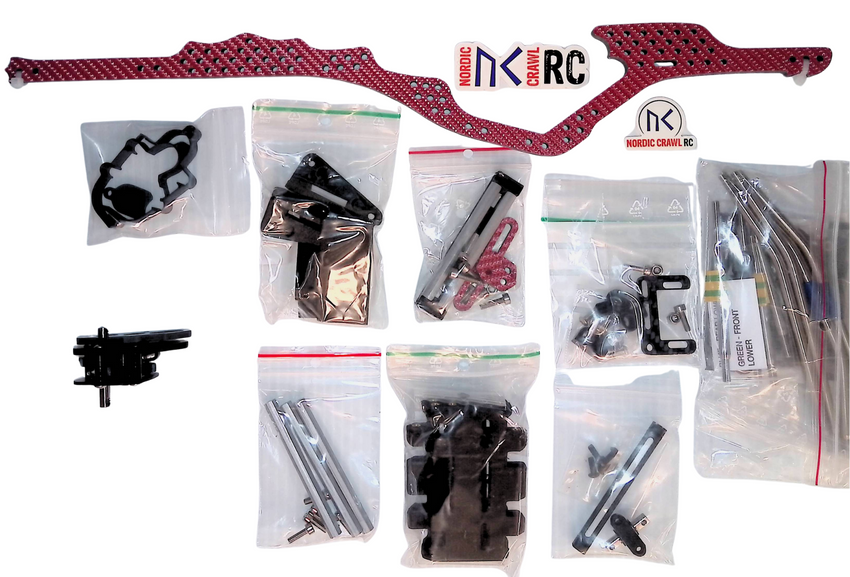

INCLUDED:
1 x KIT Dragon chassis *FIRE & ICE* edition (3mm BLUE or RED carbon rails) + 3d printed parts
INCLUDED:
1 x KIT Dragon chassis *FIRE & ICE* edition (3mm BLUE or RED carbon rails) + 3d printed parts
It is v1.5 - only few small changes (all holes are in same places)
* KIT includes:
1. Dragon Fire & Ice v1.5 chassis (16 degrees skid angle)
2. Front Bumper (made from carbon, aluminum spacers and 3d printed parts)
3. Aluminum micro winch mount
4. 3 x aluminum spacers / crossbars
5. Printed skid
6. Sliders (printed)
7. Aluminum Rhinocrawler carrier bearing
8. 4 x body mounts - aluminum 6061 (fits with 6mm round body mounts)
9. Screws
* Skid width is 70mm.
* Holes in skid are threaded. Do not use electric screwdriver
* You can use straight or portal axles
* Can be used as Performance-scale, class 2, class 3 and cheater rig. You are only limited by your imagination
No CMS (chassis mount servo) option available, only SOA (servo on axle) or BTA (behind the axle)
LINKS KIT
- 5mm titanium grade 5
- Traxxas rod ends (pivot balls on axles sides may require replacement depends of which axles you want to use)
- Fits with Capra axles, Supershafty axles (cp44, cp43), vanquish F10 portal axles
- WB about 320-323mm depends which axles are you using (for example SuperShafty have 20 degrees castor and WB is longer)
ULV Transmission (Nordic Crawl x Artful Dodgers)
- Portal or Straight axles
- Assembled with RIGHT motor mount plate (LEFT motor plate included)
- No overdrive
- Transmission Ratios are on the pictures
- Assembling and mounting options are on the pictures
- Weight: 40g / 1,4oz
- Outer BOX measurements without shaft: 20.4mm(width)(41mm with shaft) x 54mm (lenght) x 36.2mm (height)
- Titanium shaft diameter 5.0mm
- hardened steel gears with pitch 48DP and pin
