Hobbywing

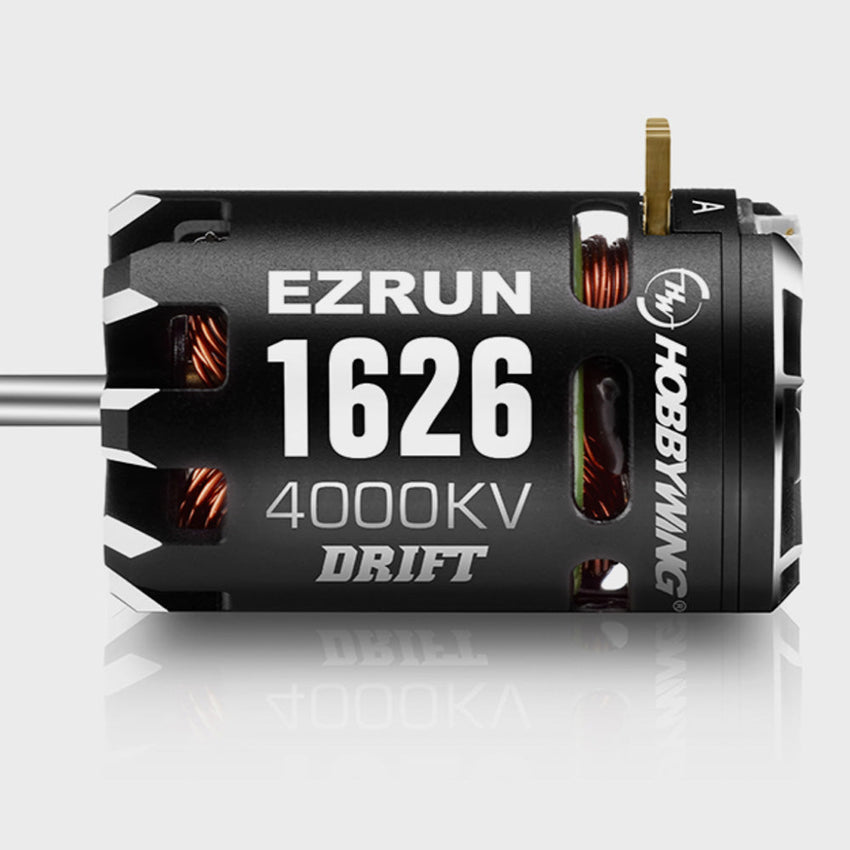

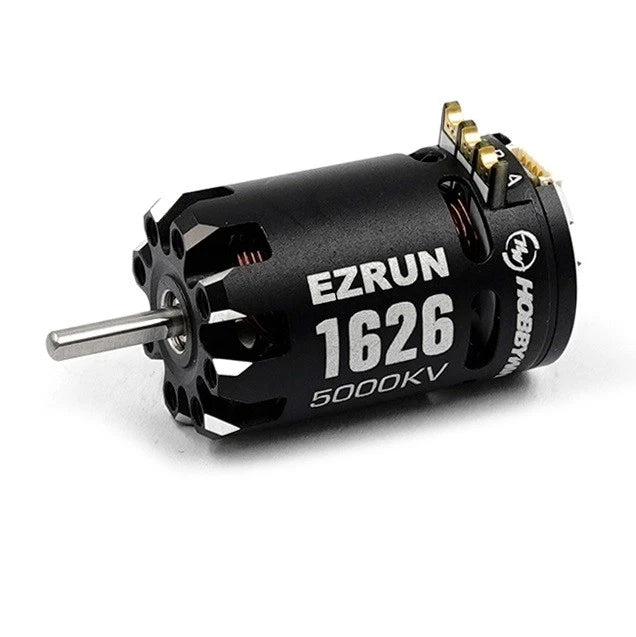

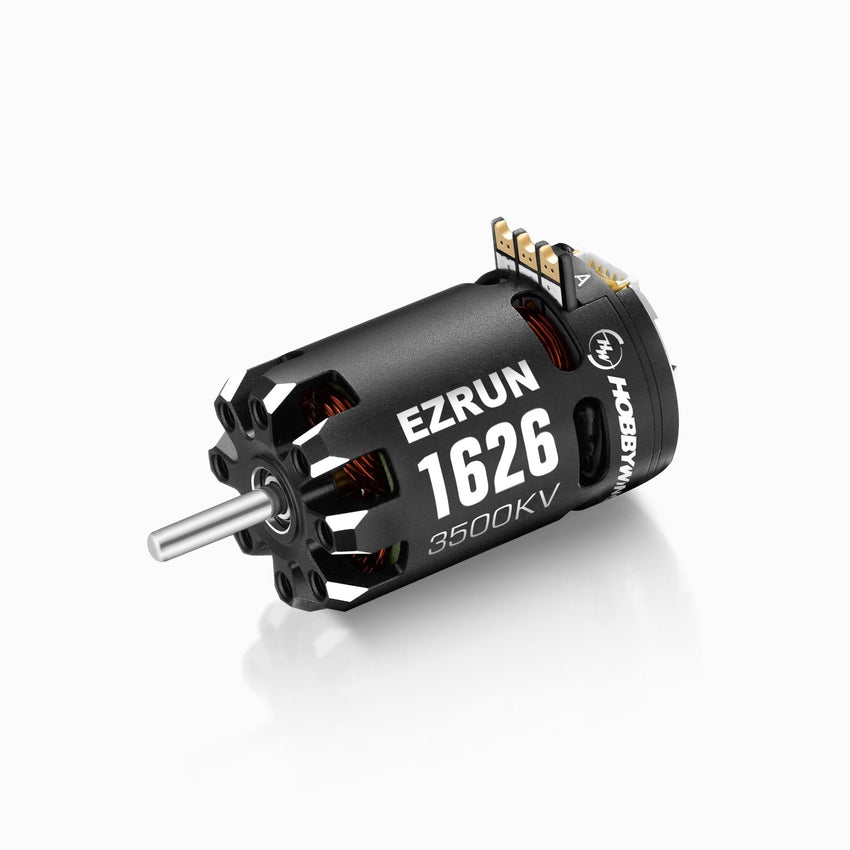

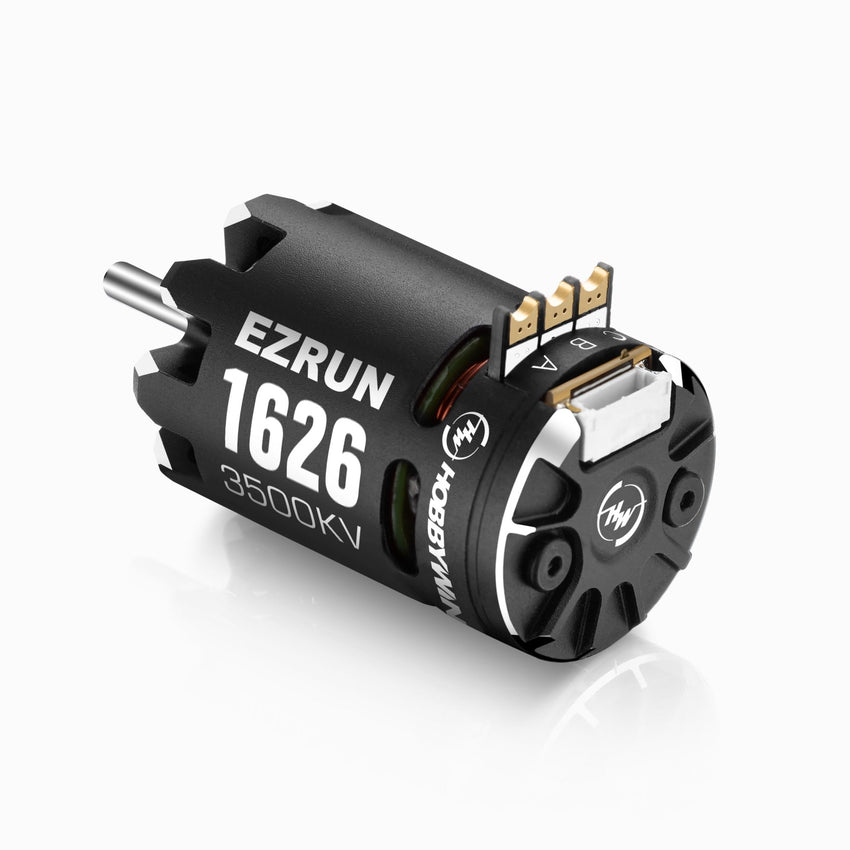

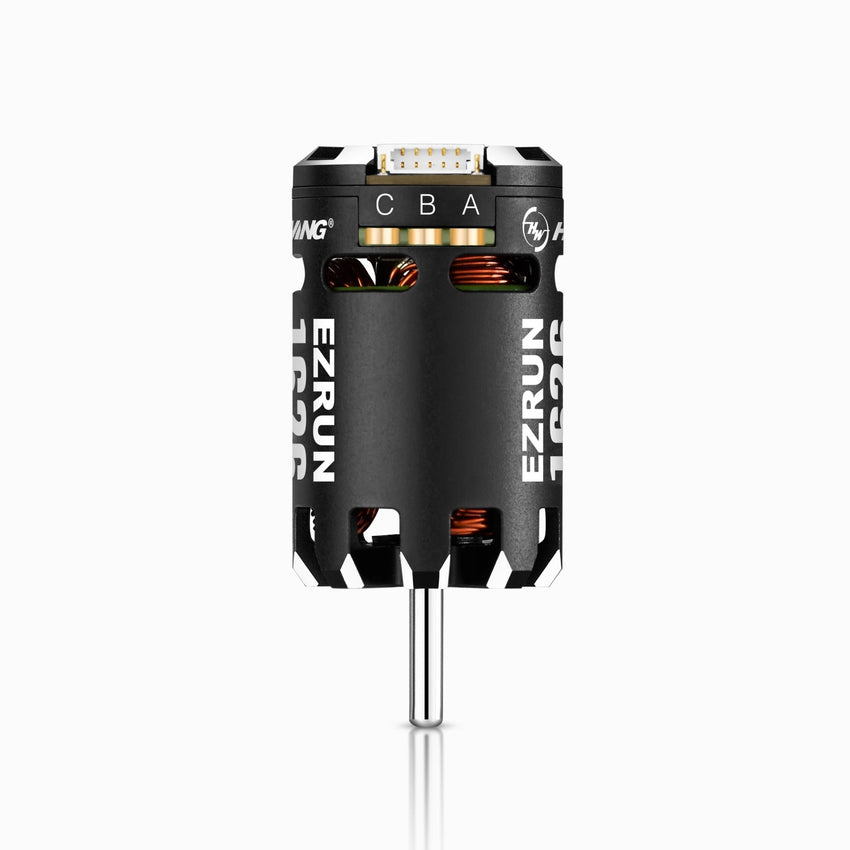

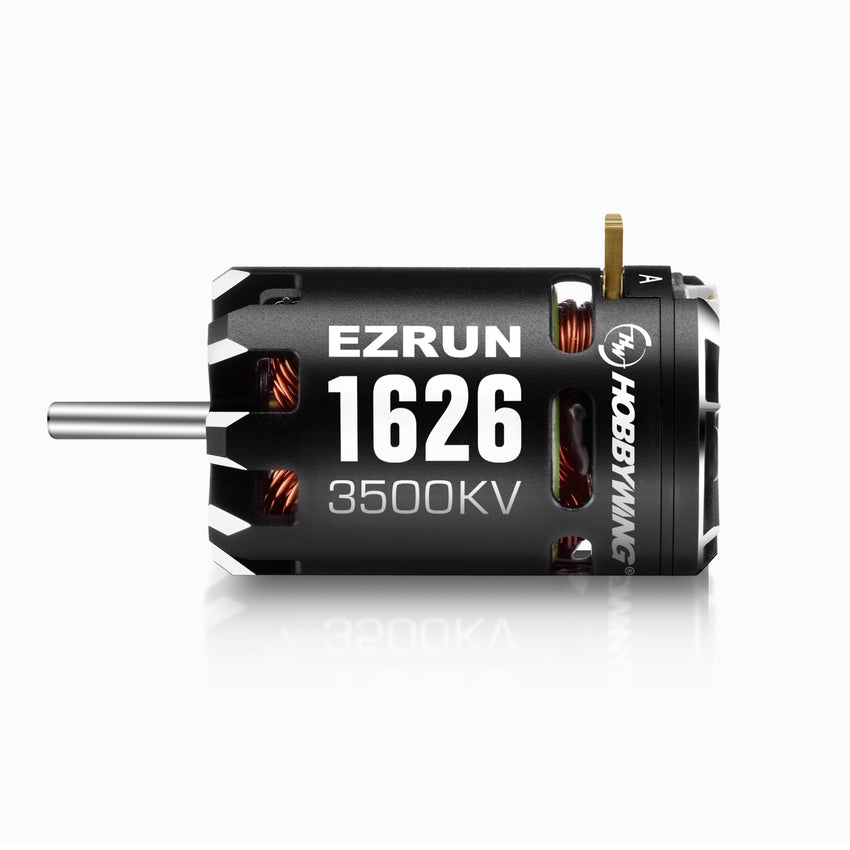

Hobbywing Ezrun 1626 Sensored Motor

SKU: 30402653

Only 4 products left

$59.99

Size: 3500KV

3500KV

4000KV

5000KV

Pickup available at Key City Hobby

Usually ready in 1 hour

1 - EZRun 1626 Sensored Brushless Motor
1 - Sensor Cable

Hobbywing Ezrun 1626 Sensored Motor

This is the Hobbywing EZRun 1626 Sensored Brushless Motor. Designed with Hobbywings latest technology and using high quality components makes this motor an excellent choice for your next 1/28 scale build.

Specification

Model	3500KV	4000KV	5000KV	6500KV
PN	30402653	30402150	30402654	30402655
Pole	2	2	2	2
KV	3500KV	4000KV	5000KV	6500KV
No-load Current(A)	0.4A	0.4A	0.5A	0.6A
Input Voltage	2S	2S	2S	2S
Diameter/ Length(mm)	16	16	16	16
Shaft Diameter/ Length (mm)	26	26	26	26
Applications	1/28th Mini	1/28th Mini	1/28th Mini	1/28th Mini
Weight	18g	18g	18g	18g

Manual Download

User's Manual

Improved top speed
Precision response
High efficiency with the cool operation
When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically
Zero cogging, consistent torque and excellent low-speed response give an amazing feel and drivability
Modular detachable structure, convenient for daily cleaning and maintenance.

Kv: 3500, 4000, or 5000
Poles: 2
No-Load Current: 0.4A
Input Voltage: 2S
Motor Diameter: 16mm
Motor Length: 26mm
Motor Shaft Length: 8.5mm
Motor Shaft Diameter: 1.8mm
Weight: 18g
Application: 1/28th Mini
