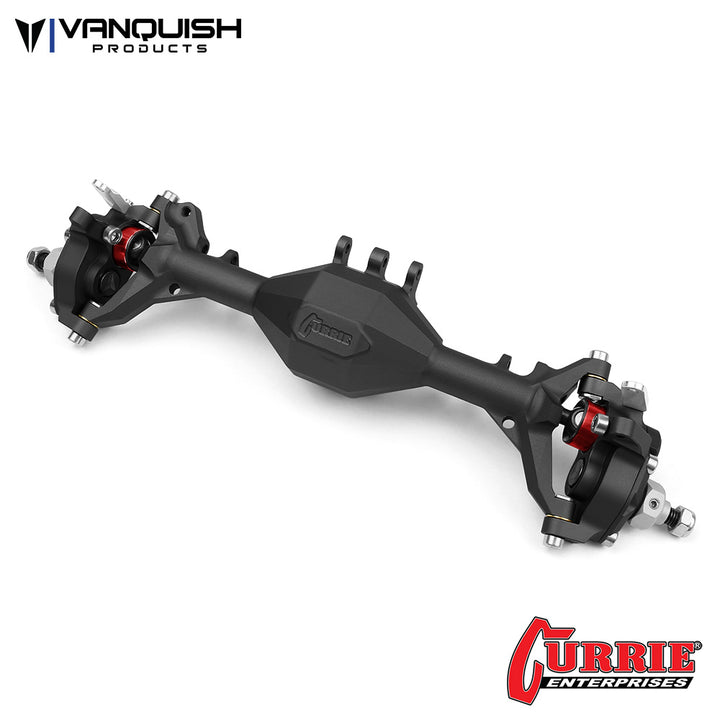

VANQUISH CURRIE PORTAL F9 SCX10-II FRONT AXLE BLACK ANODIZED

SKU:

Collections: Axles

Product type: Axle

Vendor: Vanquish

Availability:

$329.99

Add to the wishlist

Features

  • Portal box built into the included knuckle with bolt on high steer arm for double shear mounting
  • Gear reduction in the portal of 1.67:1 (18/30), Optional Overdrive Ratio of 1.4:1 (20/28) recommended for use in front axle only.
  • Included Vanquish AR44 machined gear set
  • Overall axle reduction of 6.26:1 with stock portal ratio
  • 13mm increase in ground clearance
  • Specifically design offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance
  • Hex to hex width of 7.66 inches, only roughly 5mm wider than a stock AR44 axle with a narrow hex
  • Replaceable Chromoly threaded inserts used at knuckle and C-hub to ensure a stripped thread doesn't ruin your investment
  • Brass knuckle bushing from the AR60 axles are used in place of SCX10-II sized for more durability.
  • Chromoly AR60 size VVD axle shafts come preassembled
  • Chromoly stub shafts with 6mm design at the drive pin which tapers down to a 5mm thread for ultimate strength
  • Chromoly spool
  • Aluminum 12mm hex with set screw
  • Compatible with stock SCX10-II Chassis mounted servo or F9 Servo on axle mount
  • Uses all SCX10-II linkage
  • Adjustable steering stop integrated into knuckle
  • Complete Fast Eddy Bearings kit
  • Licensed by Currie Enterprises
  • Comes with One Piece Bearing Retainers (Patent Pending)
  • Double shear shock mounts
  • Integrated Panhard mount
  • Upper link mounts built into third member
  • Increased upper link clearance for more suspension up travel ability
