Incision S8E 90mm Scale Shock Set
SKU: IRC00501
Only 4 products left
Sale price
$39.99
Pickup available at Key City Hobby
Usually ready in 1 hour

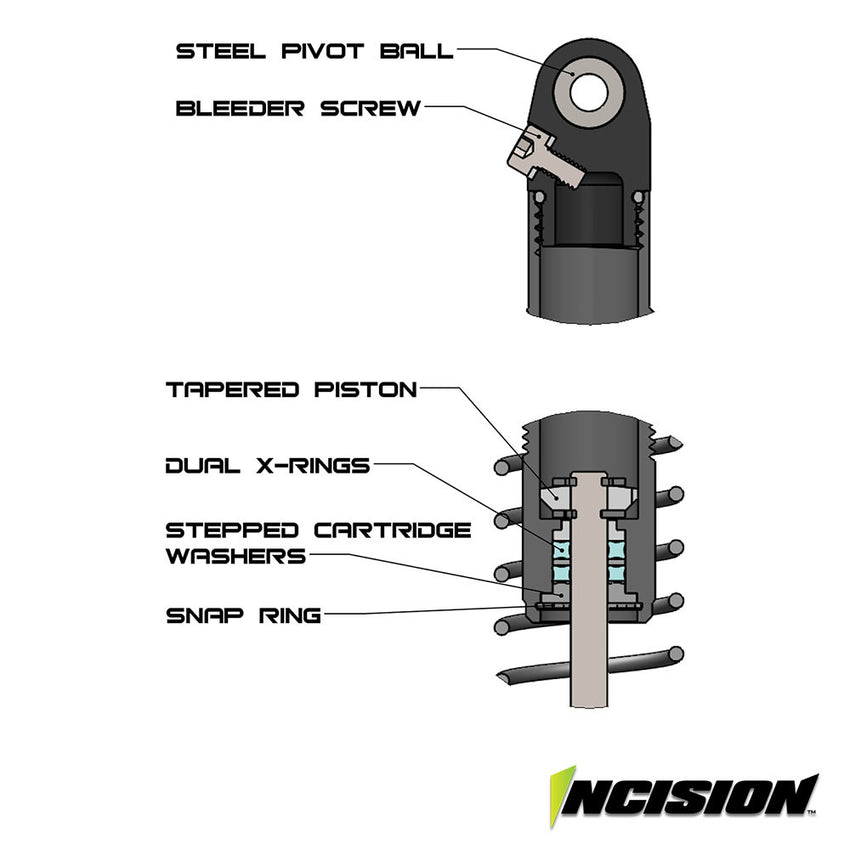

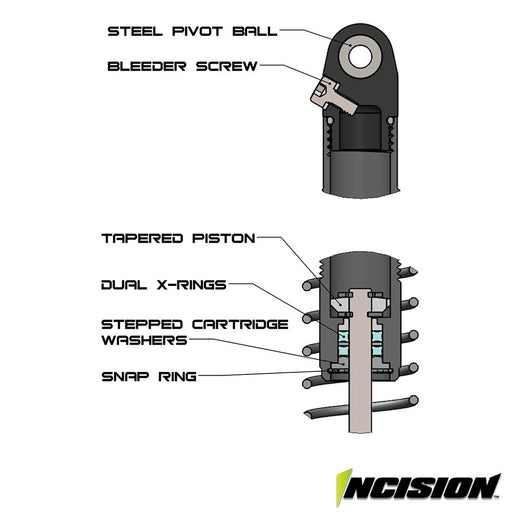

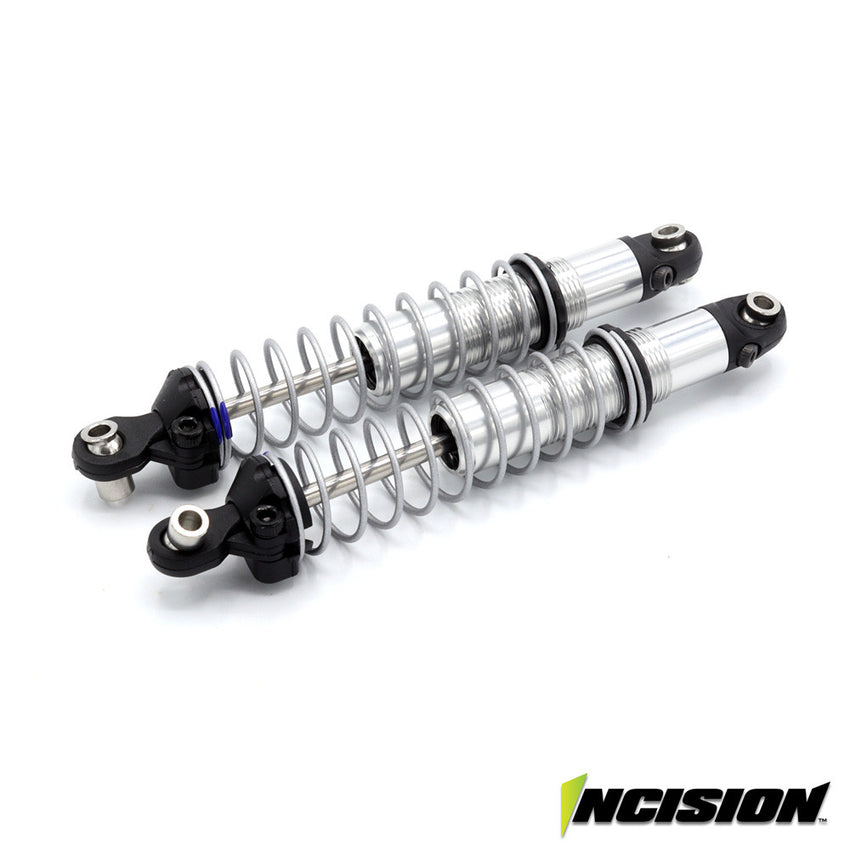

Incision S8E 90mm Scale Shocks feature a larger 8mm bore for increased damping. The increased volume reduces internal shock pressures for longer seal life. Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard o-rings. Threaded shock bodies allow for a wide range of spring preload adjustment. Offset lower shock pivot balls allow for greater flexibility for tuning shock angles.
Features:
- 8mm Bore Scale Shocks
- Machined Aluminum Threaded shock bodies
- Scale shock cap with steel pivot ball and bleeder screw
- Polished Shock shafts
- Dual X-Rings
- Optional spring rates available - IRC00513
NOTE:
- Offset lower pivot ball included for Vanquish Products F10 axles. Standard width pivot ball required for other applications.
- Shock oil is not included
- Lower cartridge comes pre-assembled with internal snap rings.
- .9mm snap ring pliers are required for assembly/disassembly of the lower cartridge. KNIPEX - 48 11 J0 are recommended.
