Holmes Hobbies

HOLMES HOBBIES TORQUEMASTER BR-MINI

SKU: 210100003

In stock, ready to ship

Sale price $69.99

Options: BR-Mini Standard $69.99

Pickup available at Key City Hobby

Usually ready in 1 hour

HOLMES HOBBIES TORQUEMASTER BR-MINI

Key City Hobby

Pickup available,

Usually ready in 1 hour

3914 Cornell Place
Unit 1
Frederick MD 21703
United States

Call: +12403414621

This is a high performance product, not a stock replacement part intended for a specific vehicle. As such, you will need to find your own system limits for each system. Happy tuning!

Designed in the USA, made in USA and Mexico from domestic and foreign sourced parts

The TorqueMaster BR Mini is the shrunken version of the BR-XL.  No case, no heatsink, and a smaller footprint.  Perfect for weight conscious crawlers, off road trucks, robotics, servomotor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density.

Comes stock with Auto lipo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings.

1 year warranty
6v to 25v input, external BEC suggested for all installations.
30a continuous, 80a burst
6v 0.5amp linear BEC @ 7.4v input
28 x 28 x 6mm PCB
8 grams (without wires)
Brushed only.
Stick and Castle Link programming compatible

Reverse and brake adjustment
Throttle and Brake curve adjustment
Regenerative Drag Brake
Active Hold Brake (The Holmes Hold!)
Quiet mode

Recommended for competitive RC Rock Crawling  and Off Road Truck environments, and 30a or less robotic use.

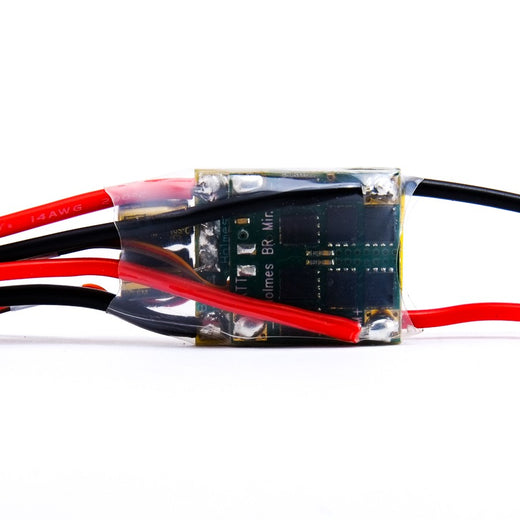

Holmes Hobbies ToruqeMaster BR Mini Dual Waterproof ESC

Holmes Hobbies ToruqeMaster BR Mini Dual Waterproof ESC is a high performance, competition dual output brushed motor ESC. The TorqueMaster BR Mini Dual is a miniaturized version of the BR-XL, with TWO ESC's shoe horned into one small package, making it ideal for weight conscious dual motor comp crawler rigs, scale builds, robotics, servo motor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density. Comes stock with Auto lipo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings. This ESC has NO connectors installed, but has pre-tinned wires that allow you to install the motor and battery connectors you prefer.

NOTE:
  • Because this is not a stock replacement ESC recommended for a specific vehicle, you will need to find the system limits for your vehicle. Happy tuning!
  • Recommended for competitive RC Rock Crawling and Off Road Truck environments, and 30a or less (per channel) robotic use.
Features:
  • 1 year manufacturers warranty
  • 6v to 25v input, external BEC suggested for all installations
  • Waterproof construction
  • Brushed only
  • Stick and Castle Link programming compatible
  • Reverse and brake adjustment
  • Throttle and Brake curve adjustment
  • Regenerative Drag Brake
  • Active Hold Brake (The Holmes Hold!)
  • Quiet mode
  • Built with 6" of 14AWG battery wire, 8" of 16AWG front exiting wire and 10" of 16AWG rear exiting wire
Specifications:
Voltage: 2S-6S (6-25V DC input)
BEC: 6V @ 5A
Continuous Current: 30A
Burst Current: 80A
Dimensions: 46x34x20mm
Weight: 38g (with battery leads)
Motor Limit: Brushed only, no 540-motor limit
