AR44 Locked Axle Set Front Rear Complete

Weight:

SKU:

Barcode:

Collections:

Product type: Axle

Vendor: Axial

Availability:

$78.99

Add to the wishlist

Features:

  • High pinion gears for added ground clearance & better driveshaft angles
  • The high pinion design allows increased gear surface contact for increased durability
  • Larger load bearings used around the gear set to reduce flex and create a stronger drivetrain
  • Single piece axle housing for added strength
  • 1-piece all-metal locker
  • Small pumpkin for increased clearance and a more realistic, scale look
  • Bolt on link mounts
  • Knuckle carriers and straight axle adapters have a better mounting system with 10-degree increment adjustments
  • Optimized gear ratio – 3.75 compared to 2.92 previously. This reduces torque twist which is typically seen with other small pumpkin axle designs

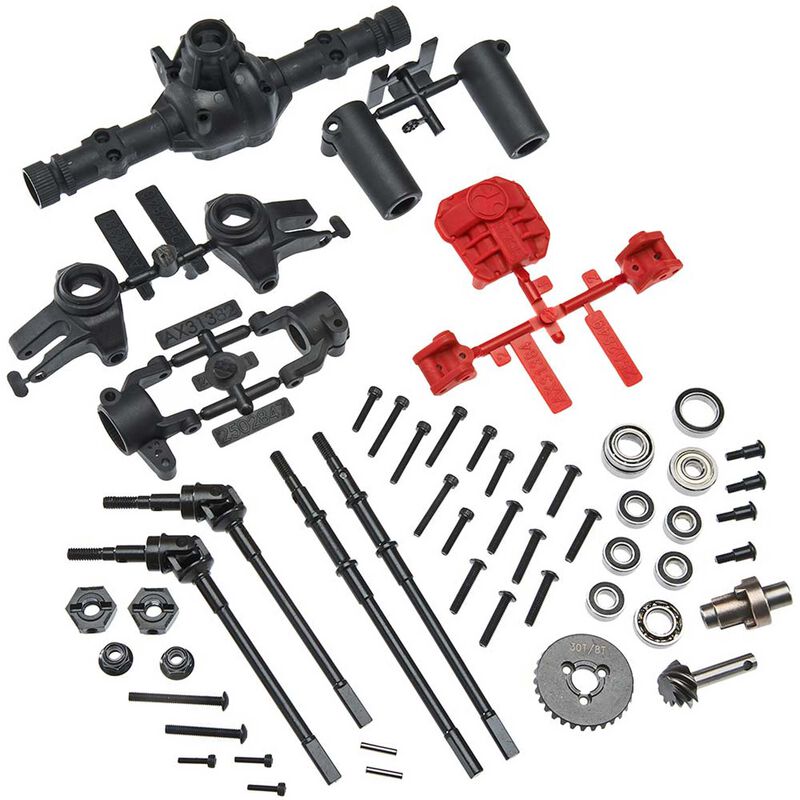

Includes:

  • (2) Pin 2.0x10mm
  • (2) 12mm Aluminum Hub (2)
  • (3) M2x8mm Cap Head (3)
  • (2) M4 Nylon Lock Nut (2)
  • (2) M3x3 Set Screw (2)
  • (6) M3x15mm Button Head (6)
  • (1) M3x20mm Button Head (1)
  • (1) M3x25mm Button Head (1)
  • (5) Bearing 5x11x4mm (5)
  • (2) Bearing 10x15x4mm (2)
  • (1) AR44 Steering Knuckles (1)
  • (1) AR44 Knuckle Carrier (1)
  • (1) AR44 Straight Axle adapters (1)
  • (1) AR44 Diff Cover/Link Mounts (1)
  • (4) M2.6x12mm Caphead - Hex Socket (4)
  • (4) M2.6x18mm Caphead - Hex Socket (4)
  • (1) AR44 Axle Housing (1)
  • (2) AR44 UVJ Axle Assembly (2)
  • (4) Shoulder Screw M3x4.5x10mm (4)
  • (1) Axle Locker (1)
  • (1) 30T Ring Gear (1)
  • (1) 8T Pinion Gear (1)
  • (2) Bearing 7x14x3.5mm (2)
  • (1) Bearing 5x14x5mm (1)
  • (2) AR44 Rear Axle Shaft (2)
