SuperShafty "OFFSET CP44" STEERING Portal Custom Capra Axle Housings

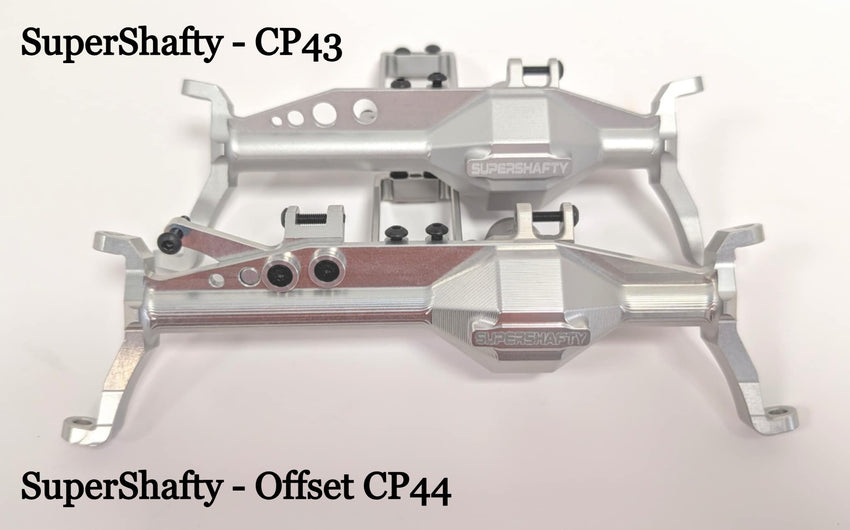

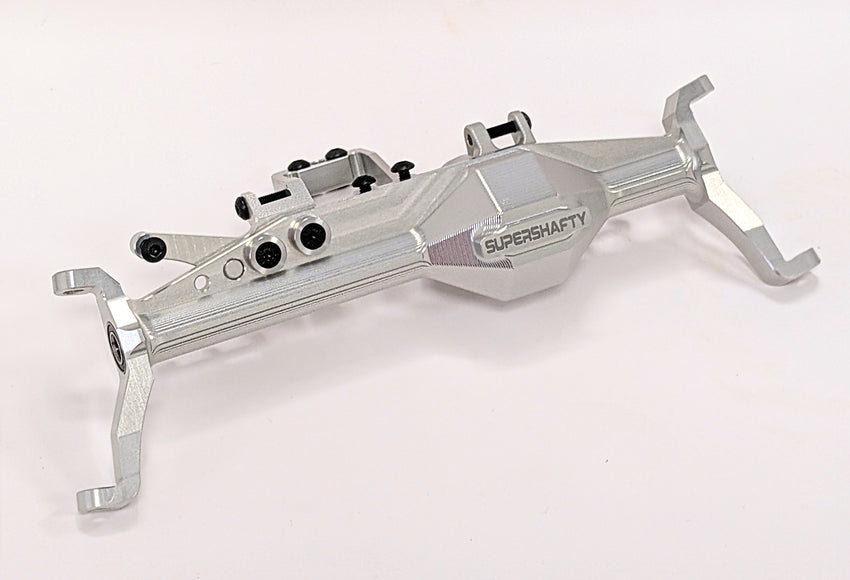

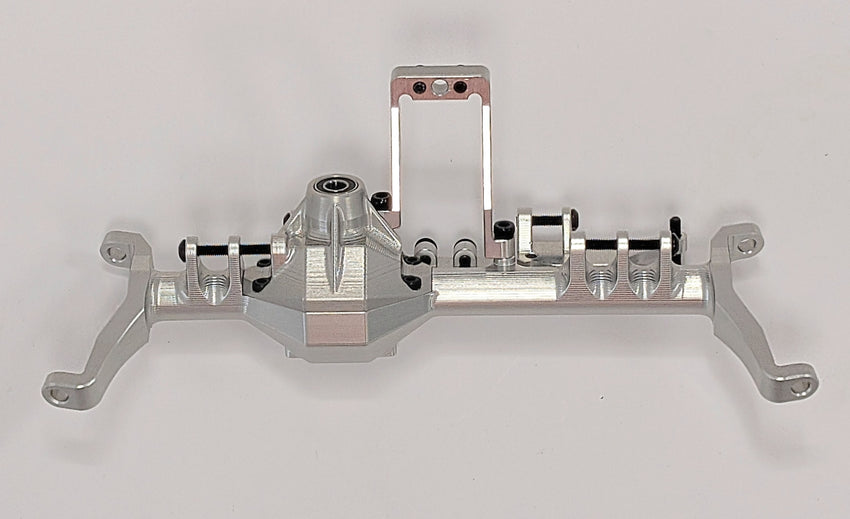

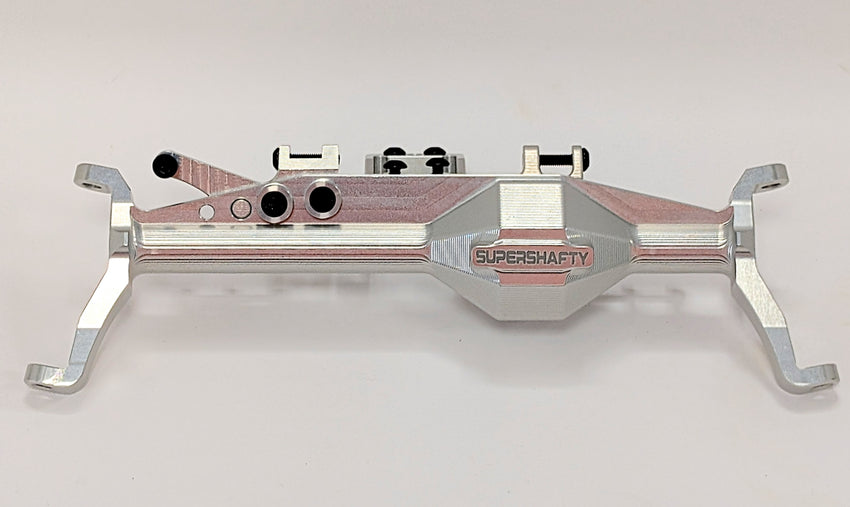

SuperShafty OFFSET CP44 STEERING Portal Custom Capra Axle Housing

Key Features:

• One Piece construction
• Machined from 7075 Aluminum
• Increased Caster Angle to 20° for improved steering without side effects of leaning them too far back. (Stock is 12°)
• Externally Limited to 50° of side to side steering, but easily modified for more should you desire. (5° over stock Capra axles)

Dimensions:

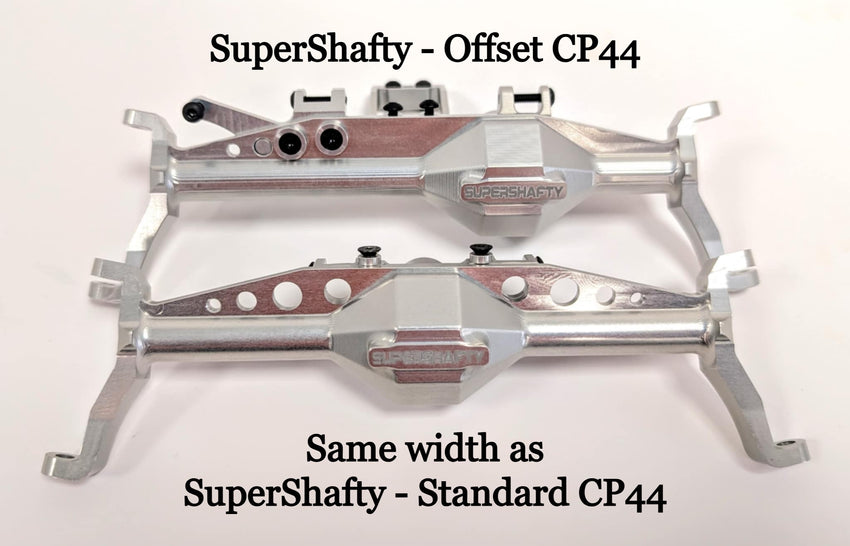

• OFFSET CP44's are the same width as Axial Capra Axle Dimensions
• They share the same offset measurement as the Vanquish Capra Axles

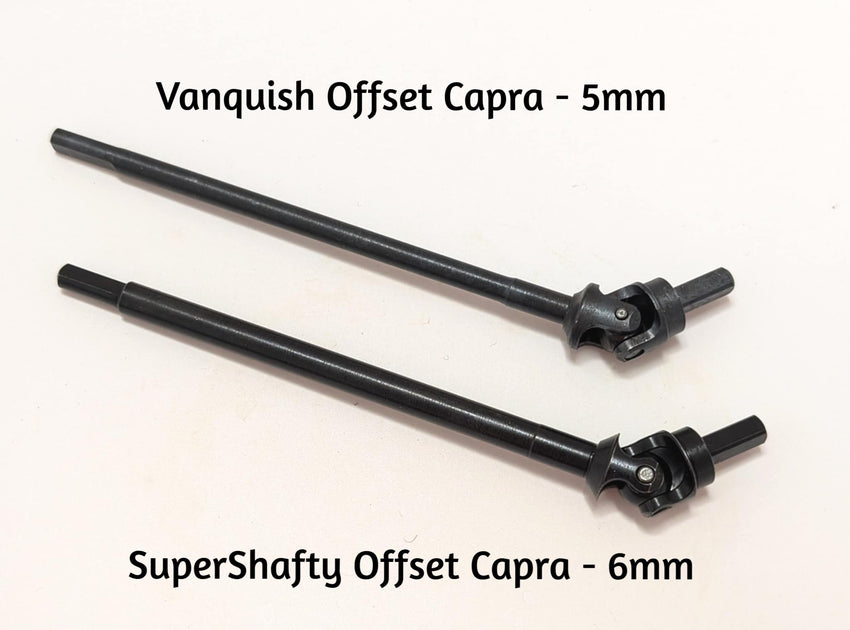

• The SuperShafty AXLE Shafts are LARGER shaft Diameter of 6mm vs 5mm or less.
• Housings come with the 6mm bearing. But its not needed to run.

Compatibility:

• Our housings work with most of the stock Capra Components. Such as the Spool, Ring and Pinion and Stock Capra Knuckles, portal gears etc.
• Also, our Knuckles work with Stock housings, as well as Axial 10.3 portal housings and Vanquish housings.
• Drop in compatibility with stock and Stock Upgrade parts.
• Ability to run Stock Plastic Knuckles
• Or Upgrade to CP44/CP43 Style Knuckles, these include Aluminum gear covers. (Less than 2oz)
• Brass CP44 Knuckles Optional, these include Aluminum gear covers. (5oz)
• Stock, or Stock Replacement Portal covers, will not fit our Knuckles.

• Bolt on Panhard option, for those wishing to ditch the stock Axle mounted servo.


Included:

• 1 Axle housing
• 1 Axle center section
• 1 Axle mounted Servo Mount
• 1 Panhard mount
• 2 differential bearing retainers
• Hardware
• Jim's Bearings


Required:

• Capra steering axle shafts and stub shafts
• Capra/AR44 Style Spool
• Capra/AR44 Style Gears
• Capra Knuckles (For Steering version)


Add-On:

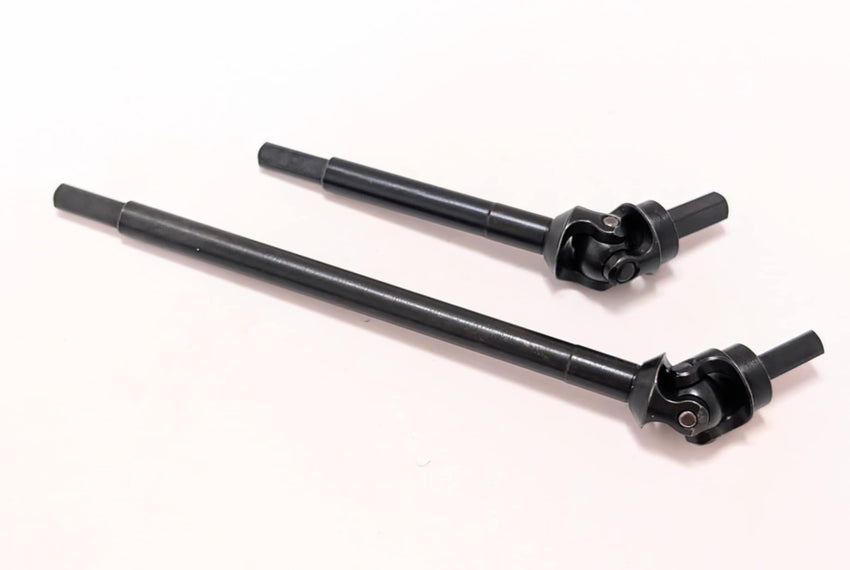

• SuperShafty 6mm Axle Shafts
• SuperShafty CP44 Lightweight Knuckles in 7075 with Alum gear covers

• Hardcore Titanium Steering Links
• SuperShafty Overdrive Portal Gears

Warranty:

• These carry a 2 Year Bombproof guarantee against Defects and Accidental breakage. We are confident in our design and product and we want you to be too.
• We know you guys are going to beat on them. So If something happens to them, We'll replace. (Does not apply to Abuse or link mounts)
• YOU MUST run a washer between the Traxxas Ball end, and the link mount, if you are running aftermarket links with the Revo Rod ends. The Traxxas Ball end is slightly narrower than the Axial one. If you don't run this washer, when you tighten the link, it will flex the link mount to be like this /  \ and this will void a warranty breakage at this part of the housing.
• Cracked link mounts because of the above issue, will no longer be covered under the warranty.

Purple Notes:

• Limited Run in Purple. The inventory showing, is 100% of the availability.
• In the Off chance that there is a defective purple piece, you may not receive a purple replacement. Based on inventory.
