Shift RCS
Shift RCS X5 1/5 Scale Direct Power 16.8v Servo
SKU: X5
Only 2 products left
Pickup available at Key City Hobby
Usually ready in 1 hour

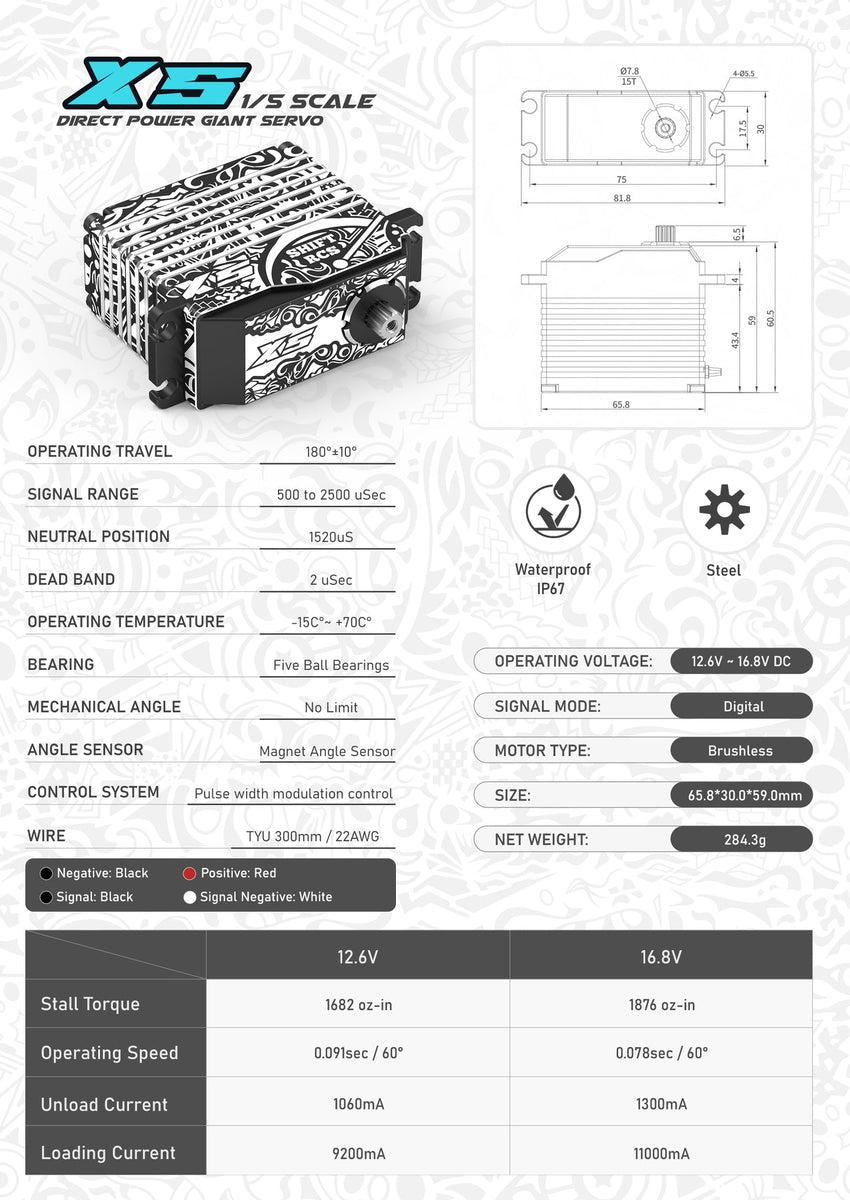

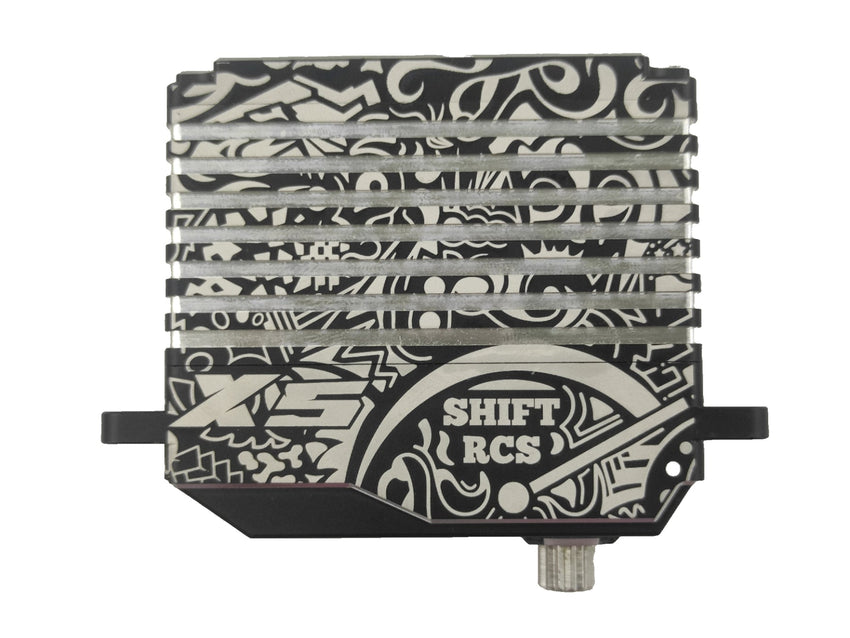

Shift RCS X5 1/5 Scale Direct Power 16.8v Servo
Operating Voltage 7.4-16.8v 4s max
You can use a bec but NO buck reducer is rated high enough and will void warranty.
Approved bec castle bec 2.0 and hobbywing bec
Direct power
15t Spline
Magnetic Sensor Waterproof IP67
Operating Voltage: 7.4-16.8V
Operating speed: 0.091sec/60° @ 12.6V
Operating speed: 0.078sec/60° @ 16.8V
Stall Torque: 1682oz-in @ 12.6V
Stall Torque: 1876 oz-in @ 16.8V
Gear: Steel
Motor: Brushless
Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
Weight: 285g
Connector Wire: TYU+JST 300mm / 22AWG
Waterproof ip67
Included:
EC5 to JST Adapter
Horn
Clamping screw size : M2*6 & M2
Screw that holds horn on spline
M3.5*8
