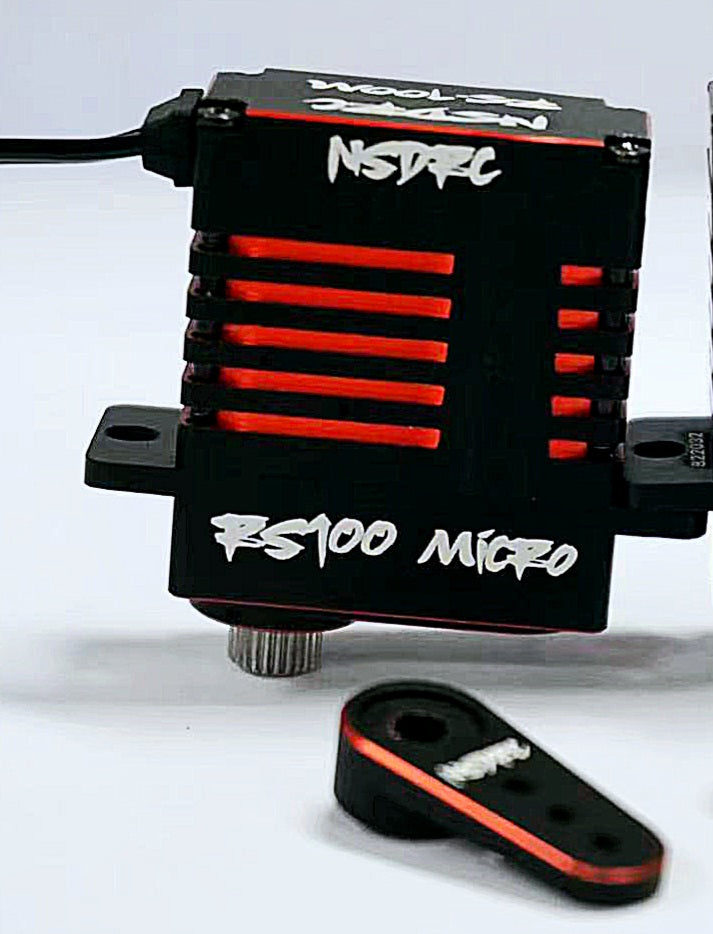

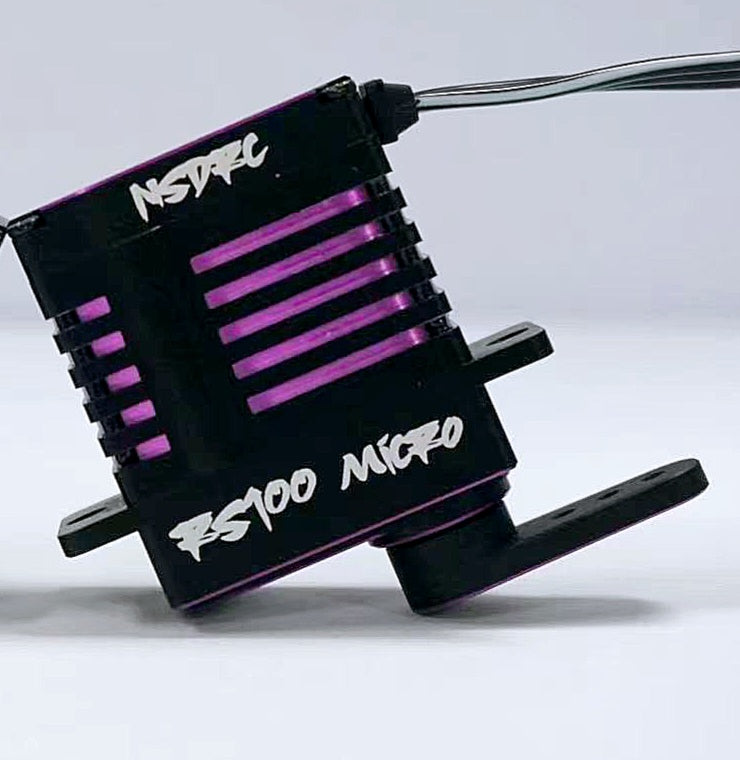

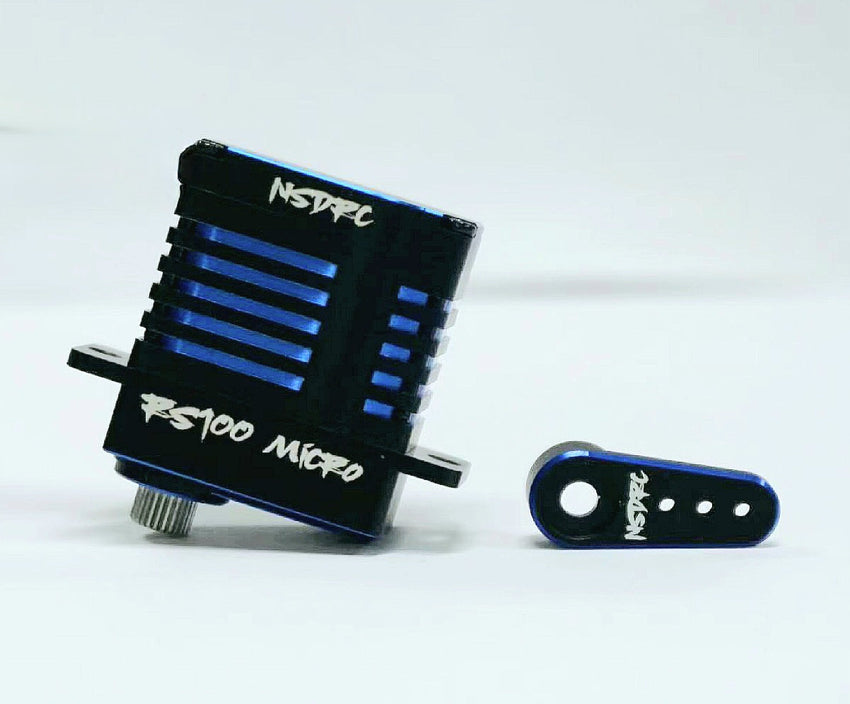

RS100M High Torque / Speed Micro Servo

☆As of May 18 2022, the RS100 has been updated! Now with even more power, and lower amp draw!

Operating Voltage: 5v - 8.4v

Torque:                                Speed:

105oz/ 7.5kg @ 5v             0.10 @ 5v

120oz/ 8.6kg @ 6v              0.09 @ 6v

143oz/ 10.3kg @ 7.4v         0.07 @ 7.4v

165oz/ 11.9kg @ 8.4v         0.06 @ 8.4v

• High Quality Motor
  •Full Cnc Aluminum Case
  •Hardened Steel Gears
  •Spline: 25T 4.9mm Micro
  •Voltage: 5v-8.4v
  •Bearing: 2BB
  •Wire Length: 185mm
  •Weight: .70 oz / 20 Grams
  •Dimensions: 23 x 12 x 26mm
  •Water Resistant with 7 point O-ring seal

            Not Submarine proof, do not submerge.


*These do not fit in the stock Scx24 servo mount, NSDRC recommends using their Aluminum Scx24 mount or similar.


*NSDRC recommends their Micro Bec for Micro servos being used in 1/24 and 1/18 Micro RC. Stock Micro RC electronics are typically pretty weak and need a boost when running high power servos, for this they recommend using their Micro Bec's.

Manufacturer Warranty: 6 month warranty from all mechanical and electrical defects. We assume no liability of damage caused from abuse, excess water, modifying of wires, use other than recommended. 8.4v Max, Nothing is unbreakable. For all warranty issue's you will need to ship the servo back to us to be inspected.
