Holmes Hobbies

Holmes Hobbies TorqueMaster BR Mini Dual Waterproof ESC

SKU: 210100008

Only 2 products left

Sale price $194.99

Pickup available at Key City Hobby

Usually ready in 1 hour


  • (1) TorqueMaster BR Mini Dual Waterproof ESC

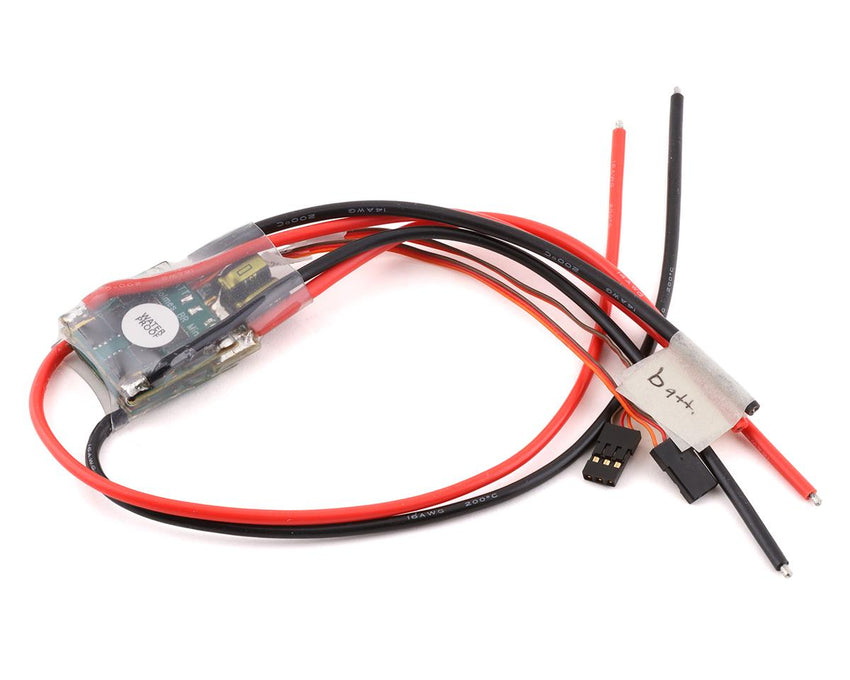

Holmes Hobbies TorqueMaster BR Mini Dual Waterproof ESC

Holmes Hobbies ToruqeMaster BR Mini Dual Waterproof ESC is a high performance, competition dual output brushed motor ESC. The TorqueMaster BR Mini Dual is a miniaturized version of the BR-XL, with TWO ESC's shoe horned into one small package, making it ideal for weight conscious dual motor comp crawler rigs, scale builds, robotics, servo motor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density. Comes stock with Auto lipo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings. This ESC has NO connectors installed, but has pre-tinned wires that allow you to install the motor and battery connectors you prefer.

NOTE:
  • Because this is not a stock replacement ESC recommended for a specific vehicle, you will need to find the system limits for your vehicle. Happy tuning!
  • Recommended for competitive RC Rock Crawling and Off Road Truck environments, and 30a or less (per channel) robotic use.
  • 1 year manufacturers warranty
  • 6v to 25v input, external BEC suggested for all installations
  • Waterproof construction
  • Brushed only
  • Stick and Castle Link programming compatible
  • Reverse and brake adjustment
  • Throttle and Brake curve adjustment
  • Regenerative Drag Brake
  • Active Hold Brake (The Holmes Hold!)
  • Quiet mode
  • Built with 6" of 14AWG battery wire, 8" of 16AWG front exiting wire and 10" of 16AWG rear exiting wire
  • Voltage: 2S-6S (6-25V DC input)
  • BEC: 6V @ 5A
  • Continuous Current: 30A
  • Burst Current: 80A
  • Dimensions: 46x34x20mm
  • Weight: 38g (with battery leads)
  • Motor Limit: Brushed only, no 540-motor limit
