Holmes Hobbies BLS SHV800 Servo


Collections: Electronics

Product type: electronics

Vendor: Holmes Hobbies



Add to the wishlist

The SHV800 servo is designed for the high impact punishment of R/C Rock Crawlers and Rock Racers, but is at home in any vehicle that needs high torque, ultra fast speeds, and massive gear strength! It can be powered directly by a 2s to 4S LiPo battery via JST connection and does not require a BEC! Clean up your wiring, gain space in a tight rig, and enjoy massive performance at high efficiency from the high quality brushless motor and circuitry.



Water-Resistant full aluminum Case with O-Ring Seals
All steel machined gears with industry leading pin strength
Oversized Brushless motor with 200C rated Neodymium magnets
24cm radio signal lead
24cm power lead with female JST plug, includes male extension
1 Year Warranty

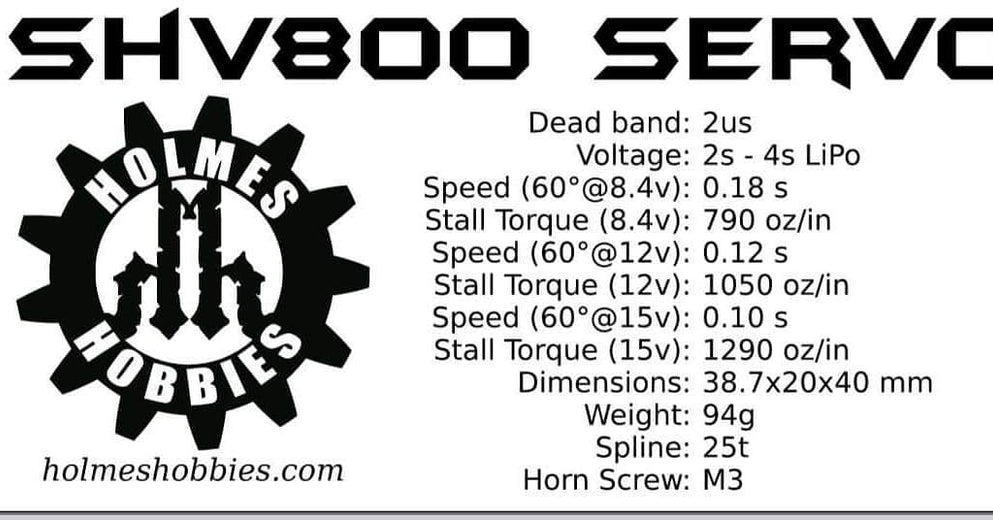

Weight: 94g
Dimensions: 38.7x20x40mm
Spline: 25 tooth (Futaba type) M3 threaded
Torque @ 8.4v: 790 oz/inch (57kg/cm)
Speed @ 8.4v: 0.18 sec
Torque @ 12v: 1050 oz/inch (75kg/cm)
Speed @ 12v: 0.12 sec
Torque @ 15v: 1290 oz/inch (93kg/com)
Speed @ 15v: 0.10 sec


The battery must be disconnected from the ESC AND servo when not in use to prevent damage to the servo and/or battery. Do not power the servo directly from a battery balance port. Doing so can damage the servo and will void the warranty. Moly (marine) grease is recommended when lubricating the gears. Dielectric grease is recommended on the power board and potentiometer if looking to increase water resistance.
